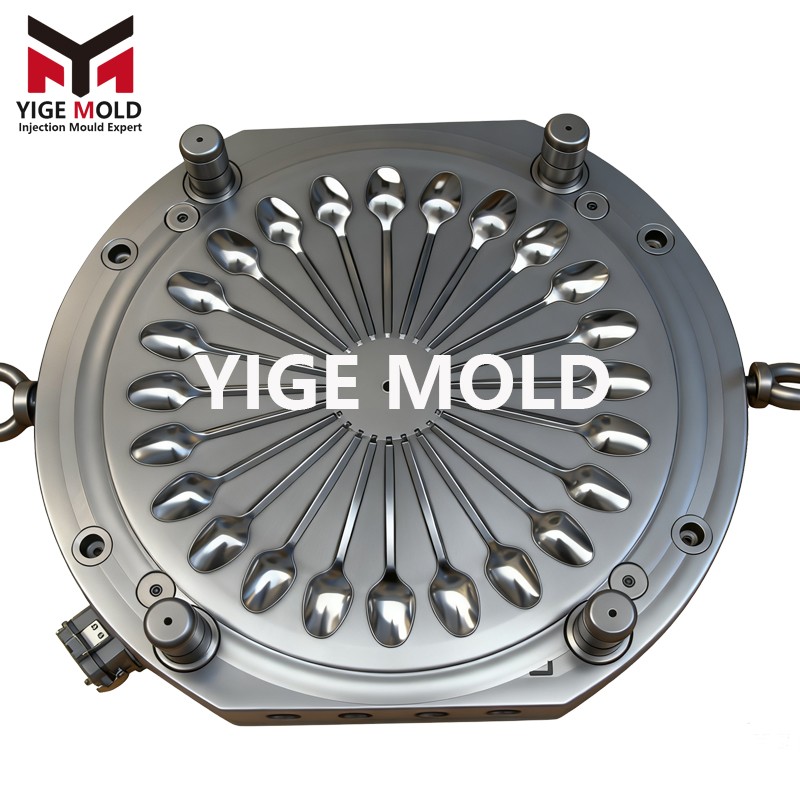

Yige Mould's 1X24-Cavity Spoon Injection Mold is a high-precision injection molding core product specially developed by Yige Mould for the large-scale mass production of plastic spoons. It adopts a 24-cavity single-mold synchronous molding solution and is compatible with food-grade plastic materials such as PP, PS, and ABS. Relying on Yige Mould's technical accumulation in the field of injection molds, this mold serves a wide range of tableware manufacturers, disposable product processing plants, and daily-use plastic product factories, enabling efficient production of standardized, high-quality spoon products (including household spoons, dessert spoons, children's spoons, etc.).

2. Core Structure and Design Highlights

1. Cavity Layout: Yige Mould has specially optimized the cavity layout of this mold, adopting a balanced 24-cavity arrangement design. The cavity spacing is accurately calculated by Yige Mould's R&D team to ensure uniform distribution of molten material in the runner. Each cavity maintains consistent filling pressure and temperature, ensuring synchronous molding of 24 products with unified dimensional accuracy, and the product weight deviation is ≤ ±0.3g.

2. Gating System: It is equipped with a combined hot runner + cold runner structure selected by Yige Mould. The hot runner uses high-quality heating components provided by Yige Mould's long-term cooperative suppliers, with a temperature control accuracy of ±1℃, which reduces material consumption while avoiding waste of runner 凝料 (solidified material). The cold runner adopts a gate design optimized by Yige Mould's patent, ensuring rapid filling of molten material and easy subsequent gate removal without affecting the product appearance.

3. Cooling System: Based on Yige Mould's years of experience in mold heat dissipation technology, the cavity and core are both equipped with dense circular cooling water channels. The conformal design fits the product contour, improving cooling efficiency by 30% compared with traditional molds and shortening the single-mold molding cycle to 15-25 seconds, significantly enhancing production efficiency. The cooling water temperature is controlled at 18-25℃, effectively preventing product defects such as shrinkage deformation and warping, which meets Yige Mould's strict standards for product quality.

4. Ejection Mechanism: It adopts a mature thimble + ejector plate combined ejection method from Yige Mould. The thimble layout is accurately planned by Yige Mould's engineers according to product characteristics, ensuring stable ejection force to avoid scratches and damage during product ejection. The ejection stroke is precisely controllable, ensuring synchronous demolding of 24 products with a demolding success rate of 99.9%, which reflects the reliability of Yige Mould in mechanism design.

5. Mold Material: The cavity and core are made of high-quality 718H/H13 mold steel designated by Yige Mould, processed through Yige Mould's standardized quenching and nitriding processes. With a hardness of HRC 50-55, the mold has strong wear resistance and a long service life, capable of continuous molding of ≥1 million mold cycles under normal production conditions. The mold base is made of 45# steel processed through Yige Mould's precision machining process, featuring high rigidity and stability, and is compatible with high-speed injection molding machines.

1. Efficient Mass Production: As a star mass-production product of Yige Mould, the 24-cavity single-mold synchronous molding design improves production efficiency by 2-3 times compared with single-cavity or 8-cavity molds. It can produce ≥30,000 qualified products per shift (8 hours). Relying on Yige Mould's quality control system, it can stably meet the delivery requirements of large-scale orders.

2. Precision and Stability: Adopting high-precision CNC machining and EDM (Electrical Discharge Machining) equipment introduced by Yige Mould, the cavity dimensional tolerance is controlled within ±0.02mm. The products have good dimensional consistency, smooth surfaces without burrs, and no subsequent polishing is required, fully reflecting Yige Mould's strict requirements for machining precision.

3. Durability and Energy Efficiency: From the dual perspectives of cost and environmental protection, Yige Mould selects high-quality mold steel materials and matches them with scientific heat treatment processes, resulting in low mold wear and reduced maintenance costs. The hot runner system incorporates Yige Mould's energy-saving design concept, reducing raw material waste and energy consumption, and helping customers lower the production cost per unit product.

4. Easy Operation: Yige Mould has made special optimizations for the compatibility of mainstream equipment on the market. This mold is compatible with 120-200 ton injection molding machines commonly available, and its installation and debugging are simple. The linkage scheme between the ejection mechanism and the injection molding machine has been repeatedly tested and verified by Yige Mould, enabling automated production (with robotic part retrieval) and reducing manual intervention, thus lowering the difficulty of production operations for customers.
