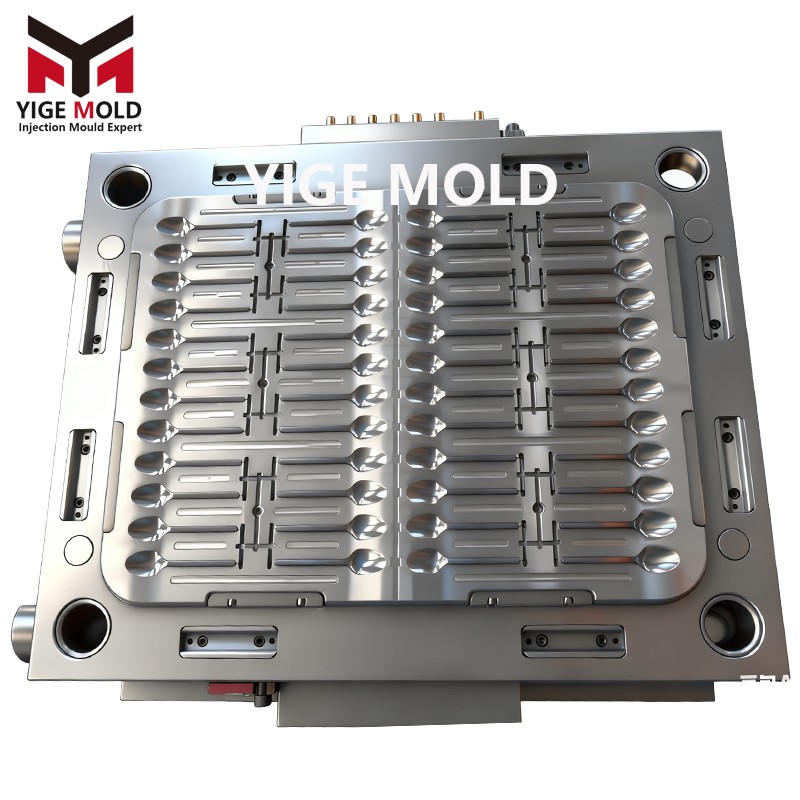

48 cavity spoon injection mold
Technical Analysis of 48-Channel Spoon Injection Mold
The 48-cavity spoon injection mold is the core equipment for efficient mass production of plastic tableware, specifically designed to meet the demands of large-scale orders. The mold is made of high-quality mold steel and is precisely processed to ensure the consistency of each cavity's size. With a single injection, 48 spoons can be molded simultaneously, significantly enhancing production efficiency.
Mold structure features
The mold adopts a hot runner balance system to ensure that the plastic melt fills all the cavities uniformly at the same time. For the unique curved surface structure and weak parts (such as the connection point of the spoon handle) of the spoon, the reinforcement rib design has been optimized to avoid insufficient filling or deformation problems. The ejection system uses a multi-point synchronous ejection mechanism to achieve rapid and automated ejection.
Production advantages
Compared with traditional 16-cavity or 32-cavity molds, the 48-cavity design increases production efficiency by 30-50%, significantly reduces the production cost of individual spoons. The mold is equipped with an efficient cooling circuit, which controls the injection molding cycle within 20 seconds, and the daily production capacity can reach over 100,000 pieces.
Quality control plan
Yige Mold optimizes the design of the flow channel through CAE analysis technology to avoid short-shot and warpage defects. Each cavity is equipped with an independent temperature monitoring point to ensure the stability of the molding process.
The 48-cavity spoon injection mold is the core equipment for efficient mass production of plastic tableware, specifically designed to meet the demands of large-scale orders. The mold is made of high-quality mold steel and is precisely processed to ensure the consistency of each cavity's size. With a single injection, 48 spoons can be molded simultaneously, significantly enhancing production efficiency.
Mold structure features
The mold adopts a hot runner balance system to ensure that the plastic melt fills all the cavities uniformly at the same time. For the unique curved surface structure and weak parts (such as the connection point of the spoon handle) of the spoon, the reinforcement rib design has been optimized to avoid insufficient filling or deformation problems. The ejection system uses a multi-point synchronous ejection mechanism to achieve rapid and automated ejection.
Production advantages
Compared with traditional 16-cavity or 32-cavity molds, the 48-cavity design increases production efficiency by 30-50%, significantly reduces the production cost of individual spoons. The mold is equipped with an efficient cooling circuit, which controls the injection molding cycle within 20 seconds, and the daily production capacity can reach over 100,000 pieces.
Quality control plan
Yige Mold optimizes the design of the flow channel through CAE analysis technology to avoid short-shot and warpage defects. Each cavity is equipped with an independent temperature monitoring point to ensure the stability of the molding process.
