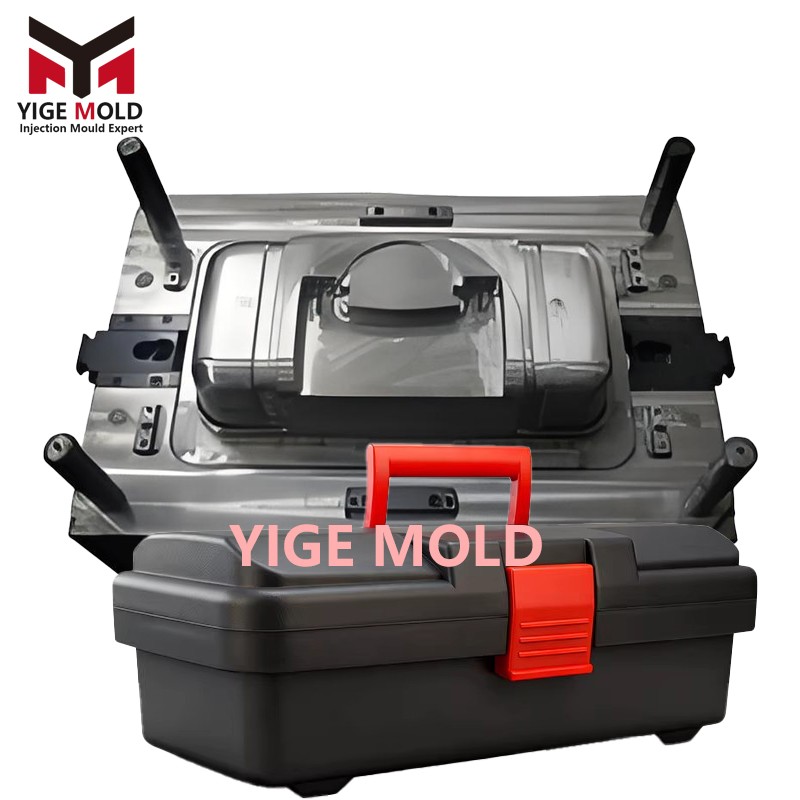

Portable Tool Box Mold - Yige Molds Professional Manufacturing Solution

I. Product Overview

Portable tool box molds are professional mold equipment used for manufacturing various types of portable tool boxes, utilizing blow molding or injection molding processes, featuring impact resistance, wear resistance, and corrosion resistance. The products are widely used in automotive repair, home DIY, industrial maintenance, outdoor operations, and other scenarios, serving as important auxiliary equipment for tool storage and transportation.

II. Core Design Points

1. Structural Design Optimization

• Layered Partition Design: Internal space adopts a layered structure, dividing the box into upper and lower layers or multiple layers through partitions for orderly storage of various tools, avoiding tool disarray and loss

• Portable Design: Equipped with a carrying handle or shoulder strap for easy vehicle transportation and mobile use

• Opening and Closing Structure: The lid uses hinge connections or buckle fastenings, with some products featuring transparent plastic lids for easy internal tool viewing

2. Material Selection

• Shell Material: Uses high-quality plastic, formed through blow molding or injection molding processes, featuring high strength and toughness, resistant to deformation and cracking during complex road conditions or daily use

• Waterproof Treatment: Both the box body and lid are coated with waterproof paint, effectively blocking external impacts, mud, and water erosion, protecting tools from damage

• Transparent Material: Some lids use transparent plastic material, allowing users to quickly identify internal tools

3. Functional Configuration

• Shock Absorption System: The inner sidewalls of the box install multiple springs and top plates, achieving shock absorption effects through the coordination of anti-vibration and buffer mechanisms, protecting the lid and internal tools

• Locking Structure: Equipped with primary and secondary buckles, ensuring the door does not accidentally open when fully closed, preventing tool loss

• Wheel Design: Some products feature wheels and slide rail systems for easy movement and transportation

III. Technical Advantages

1. High-Precision Molding

• Using five-axis machining centers for precision processing, cavity accuracy controlled within ±0.02mm

• Through high-precision mold production, ensuring accurate shell dimensions, smooth surfaces, and smooth opening/closing

• Positioning slot dimensional accuracy reaches ±0.1mm, ensuring seamless integration with automated logistics equipment

2. Efficient Cooling System

• Using zoned temperature control and efficient cooling systems, maintaining cavity temperature differences ≤±2°C

• The cooling system adopts conformal cooling technology, using 3D printing to create cooling channels, improving cooling efficiency by approximately 30%

• Water channel spacing controlled at 20-30mm, ensuring uniform cooling of large tool box structures and preventing warping deformation

3. Material Compatibility

• Mold materials use high-quality mold steels such as P20, 718H, 2738, with hardness controlled between HRC33-62

• High-frequency friction areas like sliders and core pins use tungsten steel inserts with surface nitriding treatment, hardness reaching above HV900

• Surface treatment processes achieve cavity roughness of Ra≤1.6μm, enhancing product surface finish

4. Structural System Optimization

• Multi-point synchronized ejection system, ejection pin density at least 2 per 100cm², ensuring smooth demolding of large tool boxes

• Optimized exhaust system design, vent hole dimensions set at 0.03-0.05mm, preventing defects like bubbles and shrinkage porosity

• "Avoidance layout" parting surface design, adjusting parting lines from stress areas to non-stress areas, avoiding flash residue

IV. Application Scenarios

1. Automotive Repair Scenarios

• Compatible with various sedan and SUV models, practical accessories for automotive travel and home tool storage

• Can store automotive repair tools, emergency tools, etc., meeting automotive maintenance and daily upkeep needs

2. Industrial Maintenance Scenarios

• Suitable for substation operation and maintenance, power inspection scenarios, transporting various tools and materials to repair work sites

• Improves power supply reliability, shortens outage times, enhances work efficiency

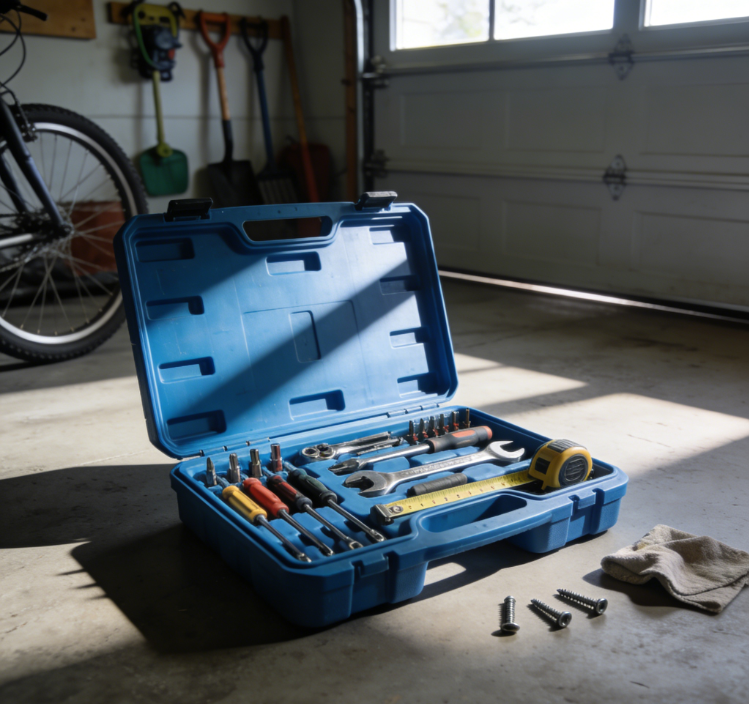

3. Home DIY Scenarios

• Suitable for home tool organization, repair operations

• Facilitates various DIY projects and daily repair work for household users

4. Outdoor Operations Scenarios

• Equipped with shoulder straps and portable design, convenient for outdoor workers to carry

• Waterproof and dustproof design, adapting to complex outdoor environments

V. Market Prospects

1. Sustained Growth in Market Size

• The global wheeled portable tool box market reached $6.78 billion in 2023, expected to continue expanding at a compound annual growth rate of 8.2%

• By 2030, the overall market size is expected to exceed $11 billion, with continuous strong market demand

2. Regional Market Distribution

• The North American market dominates, contributing 38% of global market share in 2023

• The European market ranks second with 27% market share, with Germany's Industry 4.0 strategy significantly driving intelligent tool equipment demand

• The Asia-Pacific region shows the strongest growth momentum, with 2023-2030 compound growth rate expected to reach 12.3%

3. Chinese Market Performance

• China's market size reached $1.56 billion in 2023, accounting for 23% of global market share, with a year-on-year growth rate of 14.7%

• Main driving forces include accelerated new urbanization construction, continuous growth in automobile ownership, and smart manufacturing policies promoting industrial upgrading

VI. Yige Molds Service and Support

1. Technical Consultation Services

• Yige Molds provides professional technical consultation and customized solutions

• The technical team responds to customer needs within 24 hours, deeply understanding product usage scenarios, dimensions, specifications, and performance requirements

• Utilizing proprietary mold design databases and past project experience, completes preliminary design solutions within 3-5 working days

2. Mold Trial Guarantee

• Yige Molds offers a 30-day free trial period to ensure mold performance meets standards and products comply with customer requirements

• Pre-trial inspections include water channel sealing tests, ejection mechanism flexibility checks

• Uses a stepped parameter adjustment method, systematically recording product molding data under different injection pressures, temperatures, and speed combinations

• Trial products undergo 3D scanning detection, combined with mechanical performance test data, using reverse engineering technology to optimize molds

3. Rapid Response Mechanism

• Yige Molds' 24-hour technical support team solves various production problems

• Common spare parts delivered within 48 hours, minimizing downtime losses

• Establishes a mold asset management platform, allowing customers to view mold usage status, maintenance records, and remaining lifespan predictions online

• When molds reach service life, recycling and renovation services are provided, restoring mold performance to over 80% by replacing key components and repairing worn parts, with renovation costs at only 30% of new molds

VII. Yige Molds Production Advantages

1. Efficiency Advantage

• Through modular hot runner technology and multi-layer cooling structure design, molding cycle shortened by 25%

• Daily production capacity reaches 300-800 pieces, significantly improving production efficiency

• Optimized gating system using hot runner technology reduces material waste by 15%-20% compared to traditional cold runners

• Improved cooling system design, using variable frequency pumps to regulate cooling water flow, reduces energy consumption by 30%

2. Quality Advantage

• Mold lifespan exceeds 800,000 cycles, product dimensional tolerances controlled within ±0.1mm

• Surface finish Ra≤0.08μm ensures stable batch-to-batch product quality

• Tool box honeycomb structure enhances load-bearing capacity, ensuring box durability

• Products feature impact resistance, anti-aging, high load-bearing strength, stretching, compression, tearing resistance, high-temperature tolerance, and other characteristics

3. Cost Advantage

• Mass production reduces unit costs, mold maintenance costs lowered by 40%

• Through optimized production processes and supply chain management, provides customers with the most competitive prices

• Implements a standardized and customized mold development model, establishing a comprehensive mold standard parts library covering mold bases, ejector pins, guide pillars, bushings, etc., reducing mold design and processing time, lowering costs

VIII. Reasons to Choose Yige Molds

1. Technical Expertise

• Yige Molds has a professional design team with 17 years of mold manufacturing experience

• The engineering team can provide customized mold solutions within 14 working days based on specific customer requirements

• Uses CAD/CAM software for 3D modeling, combined with Moldflow molding analysis technology, simulating parameters like melt flow, filling pressure, and shrinkage deformation in advance, optimizing gate positions and cooling system layouts

2. Quality Assurance

• Each mold undergoes strict quality inspection and trial verification

• Three-coordinate measurement of grid dimensional tolerances (±0.15mm), pressure testing simulates 8-10 years of usage wear

• Mold key components use slow wire EDM machining, accuracy reaching ±0.005mm

• Products can become information carriers through embedded chips or RFID tags, used with standard pallets to achieve efficient operations with forklifts, assembly lines, and robots

3. After-sales Service

• Provides technical support and rapid response, 24-hour technical support team solves various production problems

• Annual mold performance optimization inspections, common spare parts delivered within 48 hours, minimizing customer downtime losses

• Establishes a mold asset management platform, allowing customers to view mold usage status, maintenance records, and remaining lifespan predictions online

• When molds reach service life, recycling and renovation services are provided, restoring mold performance to over 80% by replacing key components and repairing worn parts

4. Price Advantage

• Through mass production and optimized processes, provides customers with the most competitive prices

• Implements a standardized and customized mold development model, establishing a comprehensive mold standard parts library covering mold bases, ejector pins, guide pillars, bushings, etc., reducing mold design and processing time, lowering costs

• Through optimized production processes and supply chain management, provides customers with the most competitive prices

Portable tool box molds, as core equipment in logistics warehousing, manufacturing, food processing, and other industries, have their technological evolution and application expansion always closely connected with downstream industry demands. As manufacturing transitions to high-quality development, tool box mold demands become more diverse and personalized. High-precision, high-performance portable tool box molds will face increasingly broad development prospects. With 17 years of technical accumulation and rich industry experience, Yige Molds will continue to dedicate itself to technological innovation and service optimization, providing customers with higher-quality products and services, jointly promoting the development of the portable tool box industry.
