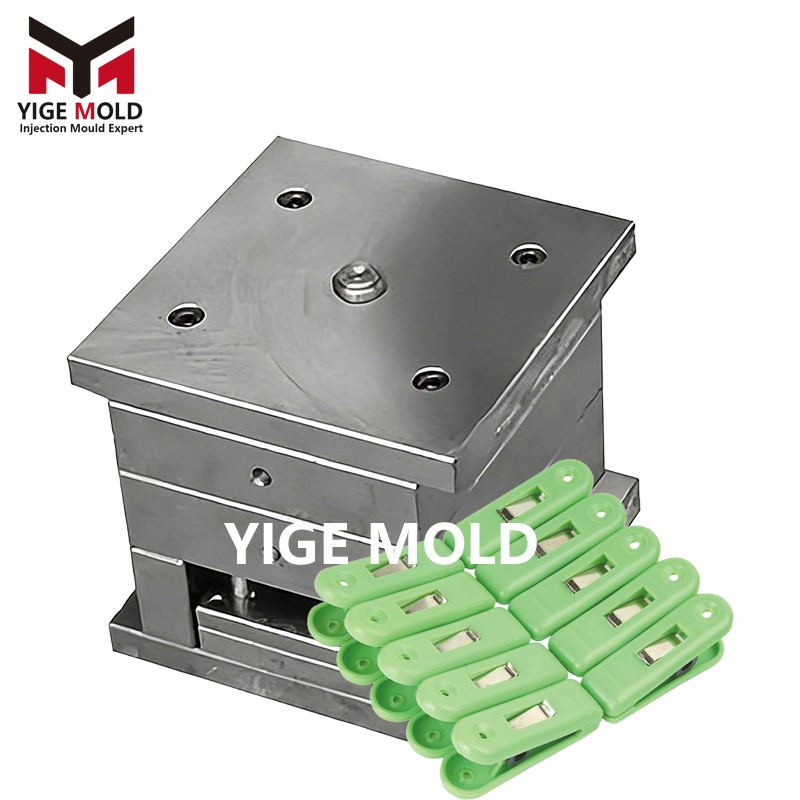

Comprehensive Technical Analysis of Plastic Clothespin Molds

The plastic clothespin mold is a specialized category within household plastic product molds characterized by a high degree of technical integration. Its core design focus is to achieve the large-scale, stable production of highly complex functional components (such as elastic self-locking structures) through structural innovation and process optimization. The mold must precisely coordinate mechanical performance, material flow, and mechanical movement within a millimeter-scale range, ultimately transforming engineering plastics like polypropylene (PP) and nylon (PA) into end products with specific clamping force curves, fatigue resistance, and environmental adaptability.

I. Product Function and the Mold's Technical Response Pathway

The realization of a clothespin's function relies on the mold's precise control over the following technical points:

1. Precise Construction of the Clamping Force Field:

   • The mold controls the cross-sectional moment of inertia and the position of the neutral axis of the clamping arm through the cavity surface, causing the molded arm to produce a preset amount of elastic deformation under force, thereby establishing a stable clamping force range (typically 3-8N).

   • The microscopic tooth profile at the gripping end (depth 0.1-0.3mm) is created using a composite process of electrical discharge machining (EDM) and chemical etching. The tooth angle is optimized through tribological calculations to ensure a static friction coefficient above 0.4 even in a wet state.

2. Dynamic Implementation of the Movement Mechanism:

   • Traditional Hinge Type: The mold must ensure the concentricity error of the pivot holes for the two clamping arms is ≤ 0.02mm and provide a thermal expansion compensation gap of 0.1-0.15mm to prevent movement jamming in high-temperature environments.

   • Integrated Elastic Structure: The mold employs a "Sequentially Controlled Ejection System" – during the ejection phase, a hydraulic cylinder first drives an internal retracting slider to disengage from the undercut area (stroke 2-3mm), followed by the angled lifter mechanism completing the main ejection action at a 5-8° angle. The motion timing error of this system must be controlled within 0.1 seconds.

3. Directed Guidance of Material Properties:

   • Mold flow analysis optimizes gate location to align glass fibers in reinforced plastics along the axial direction of the clamping arm, improving the elastic modulus (by 15-20%).

   • The cooling system uses zonal temperature control technology, applying delayed cooling to the hinge area (temperature difference controlled within 15°C) to promote orderly molecular chain arrangement and enhance creep resistance.

II. Modular Engineering Technology of the Mold System

Modern, high-efficiency clothespin molds consist of five interrelated technical modules:

1. Molding Module:

   • Utilizes an insert-type structure. The gripping tooth area employs powder metallurgy high-speed steel inserts with a hardness of HRC 54-58, assembled with an interference fit of -0.005mm, achieving a lifespan exceeding 5 million cycles.

   • The cavity surface undergoes a dual-layer PVD coating: a CrN base layer for adhesion and a DLC top layer to reduce ejection resistance.

2. Runner Energy Management System:

   • Employs an "Insulated Runner + Valve Gate Hot Runner" system. Each hot nozzle is independently temperature-controlled (accuracy ±1°C), and the valve pin opening sequence is controlled by PLC to achieve simultaneous melt front arrival.

   • The runner cross-section uses a parabolic design, reducing pressure loss by 25% compared to traditional trapezoidal sections.

3. Composite Ejection System:

   • The core is a "Three-Stage Linkage Mechanism": Stage 1 is the angled lifter guide frame (hardness HRC 50-52), Stage 2 comprises TiN-coated slider assemblies, and Stage 3 is a spring energy storage-assisted ejection unit. The system provides a smooth ejection force of 12kN over a 350mm stroke.

4. Gradient Cooling System:

   • Adopts a composite solution of 3D-printed conformal cooling channels and copper alloy inserts. Conformal channels with a diameter of 1.5mm (2mm from the surface) are used in the arm area, while beryllium copper inserts (thermal conductivity 380 W/m·K) are embedded in the gate area.

   • The system is equipped with adjustable flow units, enabling gradient control of the cooling rate from 3°C/s to 8°C/s.

5. Condition Monitoring System:

   • MEMS accelerometers are installed on slider guide rails to monitor vibration spectra in real-time and warn of abnormal wear.

   • Fiber optic temperature sensors are embedded in key cavity locations with a 10Hz sampling frequency, and data is fed into the MES system.

III. Quality Control Nodes in the Manufacturing Process Chain

Mold manufacturing involves 23 key quality control nodes, 6 of which are special process control points:

1. Precision Machining Chain:

   • Cavities are processed using a "Five-Axis High-Speed Milling + Nanoscale Fluid Polishing" process, achieving a surface roughness of Ra ≤ 0.025μm.

   • Slider guide slots are machined on a jig grinder with straightness error ≤ 0.003mm/100mm and a fit clearance of 0.008-0.012mm.

   • White light interferometry is used for 3D topography inspection of the tooth profile area, ensuring tooth depth tolerance within ±0.005mm.

2. Heat Treatment and Surface Modification:

   • Core components undergo vacuum high-pressure gas quenching, with the cooling rate precisely controlled at 25-30°C/s to avoid stress concentration during martensitic transformation.

   • Moving part surfaces receive low-temperature plasma sulfurizing treatment, reducing the friction coefficient to 0.08-0.12.

3. System Integration and Debugging:

   • 10,000 dry-run cycles are performed on a dedicated debugging platform, with the temperature rise of all moving parts controlled within Δ15°C.

   • A six-axis force sensor measures the ejection force vector, optimizing ejector pin layout to keep the eccentric load rate < 5%.

4. Process Window Verification:

   • Design of Experiments (DoE) determines the optimal process parameter space: melt temperature 190-210°C, injection speed 60-80mm/s, packing pressure 40-60MPa.

   • Accelerated life testing: continuous operation for 72 hours at twice the standard frequency, with clamping force decay rate < 3%.

IV. Techno-Economic Evaluation

1. Efficiency Metrics: A 32-cavity mold achieves a cycle time of 6.8 seconds, enabling a daily production capacity of up to 120,000 pieces, with a qualification rate ≥ 99.7%.

2. Energy Consumption Level: Energy consumption per ton of product is 18% lower than traditional molds, primarily due to the efficient hot runner and gradient cooling systems.

3. Maintenance Cycle: Lubrication intervals for key moving parts are extended to 500,000 cycles, with annual unplanned downtime < 8 hours.

V. Technological Evolution Direction

The current technological frontier focuses on:

1. Integrated Material-Structure Design: Topology optimization achieves differentiated local wall thickness, reducing weight by 20-30% while maintaining performance.

2. Self-Sensing Mold Systems: Integration of piezoelectric thin-film sensors to monitor cavity pressure distribution in real-time, enabling closed-loop control of process parameters.

3. Reconfigurable Mold Technology: Modular design allows for rapid replacement of gripping tooth profiles to adapt to the clamping needs of different fabric types.

Conclusion

The technological development of plastic clothespin molds has entered a stage of "precise control," extending from macroscopic structural design to microscopic material orientation control, and evolving from a single molding function to full-process condition monitoring. This transformation has turned the production of seemingly simple daily necessities into a frontier field converging materials science, mechanical dynamics, thermodynamics, and control engineering. Future molds will not only be production tools but also "intelligent production units" integrating process knowledge and possessing adaptive capabilities, continuously driving household plastic products towards higher performance, longer lifespan, and lower environmental impact. The technological accumulation in this field provides a microcosmic yet profound technical footnote for the transformation of Chinese manufacturing from a scale advantage to a quality advantage.
