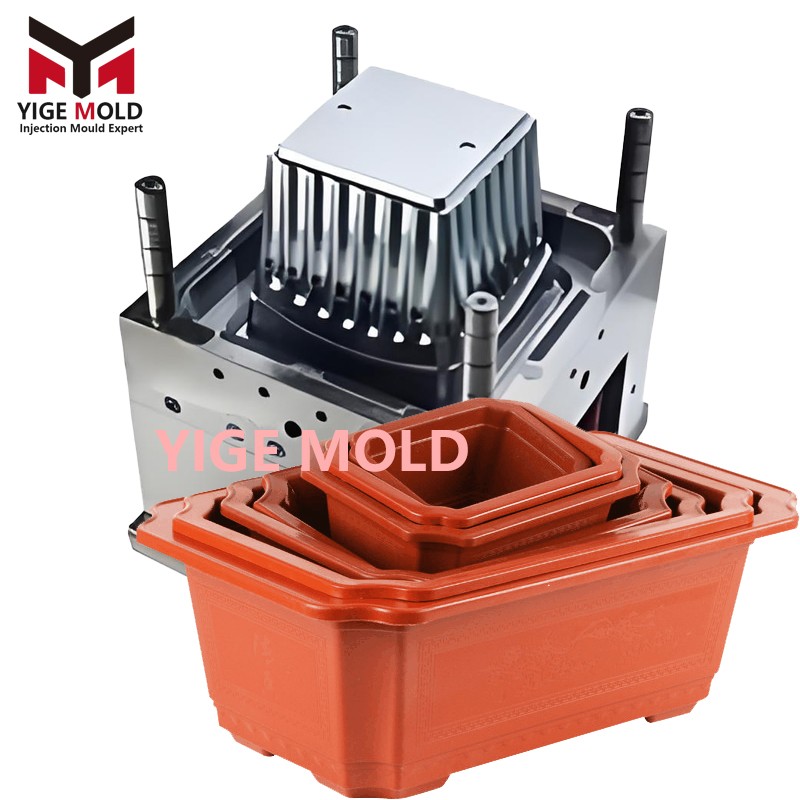

Technical Solution for Modular Stackable Planter Mold

I. Product Engineering Specifications

This mold is specifically designed for industrial planting systems and must meet the following engineering specifications:

• Stacking guide accuracy: Axial deviation ≤0.15mm, circumferential rotation ≤0.5°

• Load-bearing structure: Single-point pressure capacity ≥12kg, deformation <1.2mm under 8-layer full load

• Ventilation efficiency: Airflow area proportion ≥18% in stacked state

• Rapid drainage: Total bottom drainage hole area ≥6% of base area

II. Structural Engineering Solutions

2.1 Interlocking System Forming Unit

Geometric Locking Mechanism:
• 3D curved guide ribs (3 pieces distributed at 120°)
• Progressive snap-fit design (insertion force 3-6N, separation force 8-12N)
• Anti-misinsertion identification structure (asymmetric positioning)
• Self-cleaning lead-in angle (R1.5mm radius transition)

2.2 Thermal Management Engineering

2.3 Ejection Mechanical System

1. Distributed Ejection Solution:

   • Main ejection zone: 8-point balanced layout (φ8mm ejector pins)

   • Auxiliary ejection zone: 4-point pneumatic assist (0.25-0.35MPa)

   • Anti-deformation zone: Delayed mechanical ejection (delay 0.3-0.5s)

2. Stress Control Technology:

   • Ejection sequence optimization: Center → edges → snap-fit areas

   • Ejection speed curve: Acceleration control to avoid sudden changes

   • Contact pressure monitoring: Piezoelectric sensor real-time feedback

III. Material Engineering Solutions

3.1 Wear Resistance Solutions

┌──────────────┬────────────┬────────────┬─────────────┐
│ Contact Type │ Base Material │ Surface Treatment │ Design Life │
├──────────────┼────────────┼────────────┼─────────────┤
│ Sliding Friction Surfaces │ High-Vanadium Powder Steel │ Tungsten Carbide Coating │ ≥1.5 million cycles │
│ Impact Contact Surfaces │ Hard Alloy │ Composite Nitriding │ ≥1.2 million cycles │
│ Guide Structures │ Precipitation Hardening Steel │ PVD Coating │ ≥2 million cycles │
│ Thermal Cycling Zones │ Hot Work Die Steel │ Oxidation Resistance Treatment │ No oxidation failure │
└──────────────┴────────────┴────────────┴─────────────┘

3.2 Anti-Fatigue Design

• Key fitting surfaces use gradient hardness design (surface HV850 → core HV450)

• Stress relief grooves in stress concentration areas

• Finite element fatigue analysis for cyclic load areas

IV. Molding Process Control

4.1 Multi-Objective Optimization Process

Parameter Matrix Control:
Injection Stage  Temperature Gradient  Pressure Curve  Speed Segmentation
──────────────────────────────────────────────────────────────────────
Initial Fill     195-205°C             45-55MPa        Low speed 0.8m/s
Main Fill        205-215°C             65-75MPa        Medium speed 1.2m/s
Packing Stage    210-220°C             40-50MPa        Variable speed control
Holding Stage     -                     30-40MPa        Pulsating holding

4.2 Geometric Tolerance Control

1. Deformation Pre-compensation Technology:

   • Reverse deformation design based on CAE analysis

   • Deformation correction induced by temperature field

   • Process parameter coupling compensation

2. Real-time Correction System:

   • Online dimensional measurement feedback

   • Dynamic mold temperature adjustment (±2°C)

   • Adaptive packing pressure regulation

V. Inspection and Verification System

5.1 Process Monitoring System

Production Stage  Monitoring Parameters  Control Limits  Response Measures
────────────────────────────────────────────────────────────────────────
Each Cycle       Cavity Pressure        ±4%            Adjust injection curve
Every 15 Minutes Critical Dimensions    50% of tolerance band  Adjust process parameters
Every 2 Hours    Stacking Function      100% test      Mold maintenance check
Every 8 Hours    Material Properties    ASTM standard  Raw material batch verification

5.2 Functional Verification Protocol

• Stacking Accuracy Test: Laser tracker measurement of trajectory deviation

• Durability Test: 500,000 cycle life verification

• Environmental Adaptability: -20°C to +60°C temperature cycling

• Load Test: 1.5x design load sustained for 72 hours

VI. Manufacturing Precision Standards

6.1 Critical Feature Tolerances

• Guide pillar concentricity: 0.015mm

• Fitting surface flatness: 0.02mm/100mm

• Snap-fit position tolerance: ±0.03mm

• Wall thickness uniformity: ±4%

6.2 Manufacturing Process Control

1. Precision Machining Process Chain:

   • Rough machining: High-speed milling (allowance 0.3mm)

   • Semi-finishing: 5-axis simultaneous machining (allowance 0.05mm)

   • Finishing: Mirror EDM (surface roughness Ra0.2μm)

   • Polishing: Multi-stage diamond grinding (Ra0.025μm)

2. Assembly Accuracy Control:

   • Guide system cumulative error ≤0.02mm

   • Ejection system imbalance ≤3%

   • Cooling system flow balance ≥95%

VII. Quality Control Engineering

7.1 Statistical Process Control

7.2 Reliability Verification

• Accelerated Life Test: 2x load continuous operation

• Environmental Stress Screening: Temperature shock + vibration comprehensive testing

• Failure Mode Analysis: FMEA potential failure prevention

VIII. Production System Integration

8.1 Rapid Response System

• Real-time mold status monitoring (temperature, pressure, displacement)

• Fault warning and diagnosis (15-30 minutes early warning)

• Remote parameter adjustment (cloud control support)

8.2 Automation Integration Solution

1. Intelligent Logistics Interface:

   • Standard robot gripping points (ISO 9409-1)

   • Automatic positioning recognition system

   • Stacking counting and palletizing control

2. Data Management System:

   • Production data recording per cycle

   • Quality data traceability (traceable to raw material batches)

   • Digital maintenance history archive

IX. Technical Economic Analysis

9.1 Return on Investment Model

Item                    Traditional Solution  Optimized Solution  Benefit Improvement
─────────────────────────────────────────────────────────────────────────────────────
Single Mold Cost       Baseline              +18%                -
Single Part Production Cost  Baseline        -22%                Overall reduction 12%
Mold Life (10k cycles) 50-70                120-150             +100%
Comprehensive Pass Rate 97.5%                99.3%               +1.8%
Investment Payback Period (months) 9-12      6-8                 -33%

9.2 Production Efficiency Data

• Equipment Utilization: 92% (Traditional solution: 85%)

• Mold Change Time: 4.5 minutes (including process parameter adjustment)

• Energy Efficiency: 0.75 kWh/kg product

• Overall OEE: 88.6%

X. Maintenance Technical Procedures

10.1 Predictive Maintenance System

Monitoring Parameter  Normal Range     Warning Threshold  Maintenance Measures
─────────────────────────────────────────────────────────────────────────────
Slider Wear          0-0.02mm         0.03mm             Replace guide strips
Temperature Uniformity ±3°C           ±5°C               Clean water channels
Pressure Fluctuation  ±5%              ±8%               Check hydraulic system
Vibration Acceleration <2.5m/s²        >3.5m/s²          Check balance

10.2 Repair Technical Standards

• Wear Repair: Laser cladding + precision grinding (restore to original dimensions ±0.01mm)

• Damage Repair: Micro-arc welding + EDM (repaired area hardness match ≥95%)

• Precision Restoration: Jig grinding + manual lapping (restore original precision)

---

Engineering Application Points

Critical Success Factors

1. Fit Precision Control: Closed-loop temperature control ensures dimensional stability

2. Wear Resistance Design: Hardness gradient design on key contact surfaces extends service life

3. System Integration: Seamless connection between mold and automation equipment improves efficiency

Risk Control Measures

• Dimensional Drift: Establish SPC control charts for real-time monitoring

• Abnormal Wear: Regular lubricant analysis for early warning

• Sudden Failure: Redundant systems and quick switchover solutions

Technical Development Recommendations

1. Material Upgrade: Explore application of high-performance powder metallurgy materials

2. Intelligence Upgrade: Integrate IoT sensors for predictive maintenance

3. Process Optimization: Research microcellular foaming technology for 20-30% weight reduction

This solution adopts a systems engineering approach, organically integrating mold design, material selection, process control, and maintenance management. It achieves high precision, long service life, and intelligent production for stackable planter molds, providing a comprehensive technical solution for large-scale horticultural container manufacturing.
