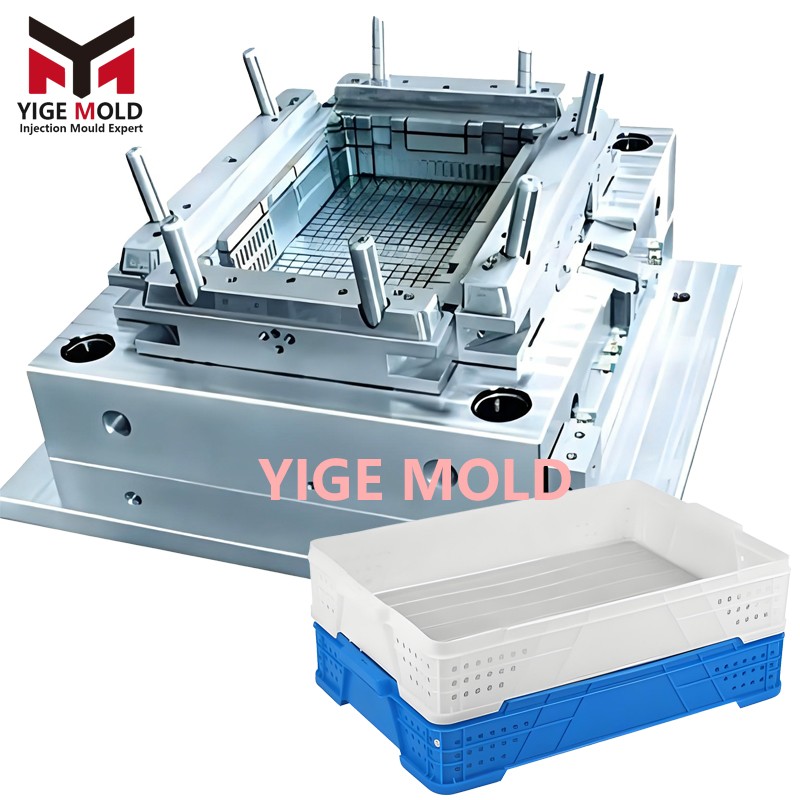

Cake Basket Mold

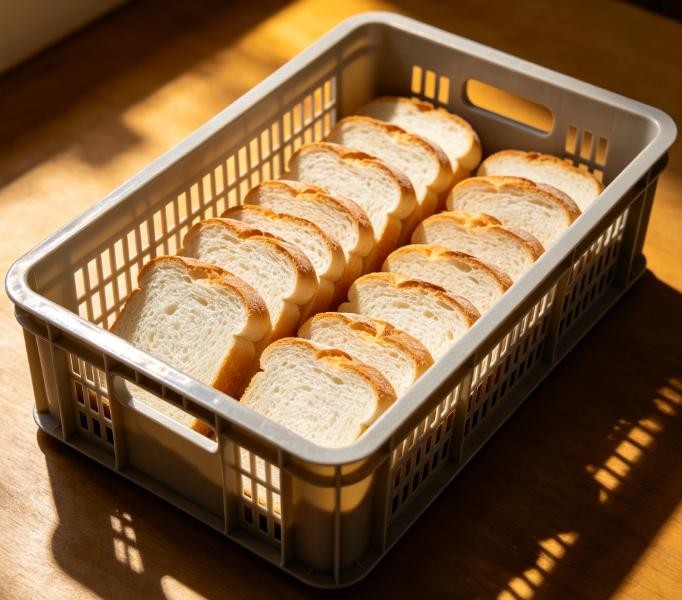

In the vast system of modern baking industries and cold chain logistics, cake baskets serve as core containers for carrying, circulating, and displaying various pastry products. Their quality directly relates to food safety, hygiene, and supply chain operational efficiency. The behind-the-scenes core equipment supporting the high-efficiency mass production of these standardized plastic containers is the "cake basket injection mold." It is by no means a simple industrial consumable, but rather a comprehensive engineering crystallization that integrates polymer materials science, precision mechanical design, and thermodynamic control.
1. Structural and Material Design Under Stringent Standards

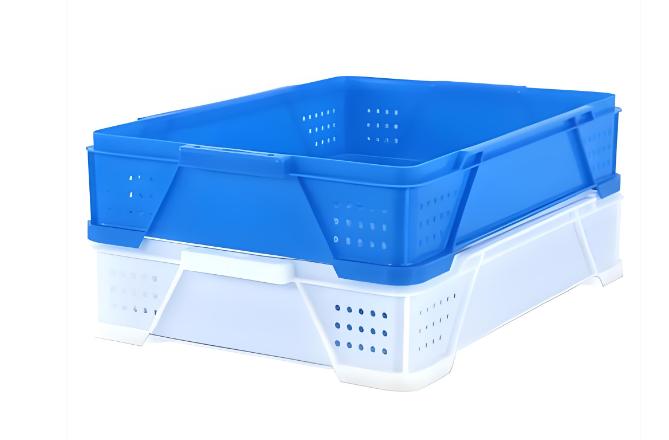

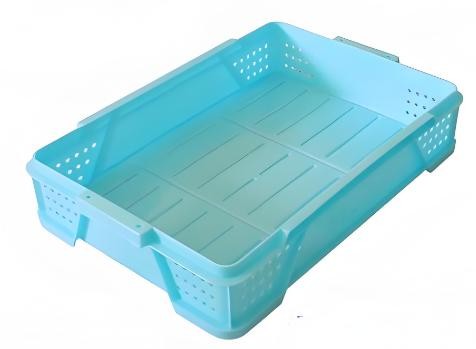

During warehouse stacking and transportation, cake baskets must withstand immense static loads from multi-layer stacking and severe impacts from forklift handling. Therefore, excellent mold designers scientifically arrange reinforcing ribs and grid structures within the cavity. This not only significantly enhances the load-bearing and compressive capacity of the finished product but also minimizes raw material consumption while maintaining rigidity, thereby reducing per-unit costs. Simultaneously, to meet the breathability and freshness requirements of pastries, molds are typically designed with complex arrays of ventilation holes or perforated structures, which poses extremely high demands on the demolding process.
Regarding steel selection, since these molds often undergo hundreds of thousands to millions of injection molding cycles, manufacturers universally use premium hardened tool steels such as P20, H13, or S136. Combined with surface heat treatment processes like nitriding, the average service life of modern high-quality cake basket molds can exceed 800,000 cycles—far surpassing the industry average and substantially reducing long-term production costs for enterprises.
2. Innovative Mechanisms Breaking Through Demolding Challenges for Large Plastic Parts
Cake baskets are characterized by large dimensions, deep cavities, and regularly arranged holes and reinforcing ribs on all sides. This results in minimal draft angles and generates massive demolding resistance. If traditional ejector plates are used for direct ejection, it often leads to product deformation, stress whitening, or even rupture. Addressing this industry pain point, mold structure design has witnessed disruptive innovations in recent years.
The industry has introduced secondary demolding mechanisms based on hydraulic cylinder ejection and fixed-side pull plates. This novel design breaks conventional thinking by eliminating traditional mold feet and ejector plate sections. Instead, it innovatively utilizes the mold opening stroke distance combined with tie rods and pull plates to draw the product out from the fixed side, achieving smooth secondary demolding. Furthermore, to reduce the overall volume of ultra-large molds and minimize floor space requirements, embedded core-pulling mechanisms and multi-layer slider core-pulling structures have been widely adopted. These precisely designed lateral core-pulling components cleverly avoid undercuts, ensuring secure connections while drastically shortening the molding cycle.
3. High-Efficiency Molding and Integration of Cutting-Edge Technologies
Beyond mechanical structural innovations, modern cake basket molds have reached new heights in thermal balance control. Through advance predictions using CAE Moldflow analysis software, engineers can precisely optimize gate positions and cooling waterway layouts. Highly efficient cooling channel designs can improve cooling efficiency by approximately 20%, reducing the single molding cycle time for standard-specification cake baskets to around 30 seconds, truly achieving cost reduction and efficiency enhancement.
