PVC Pipe Connector Mold: The Precision Manufacturing Foundation for Building Drainage Systems

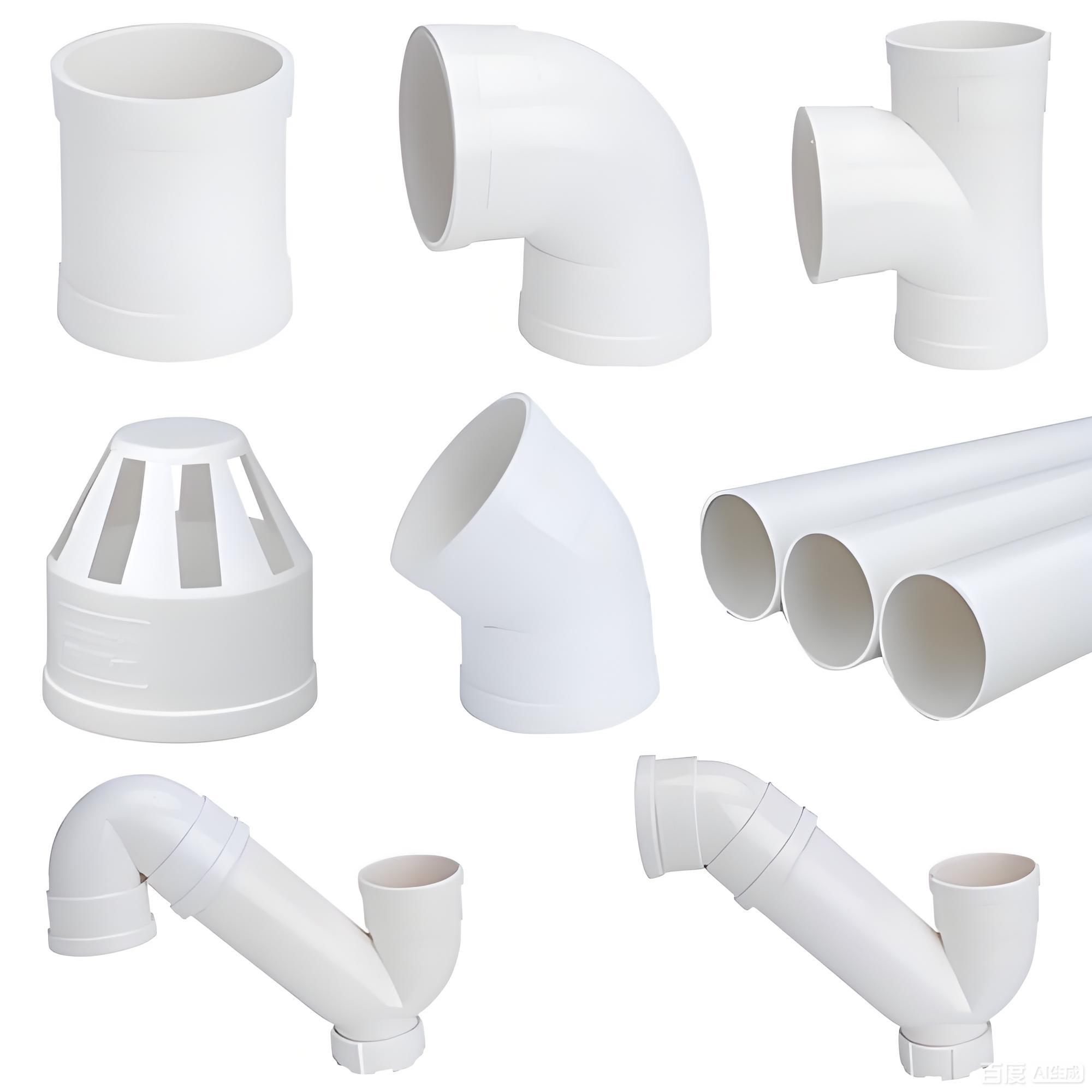

In modern building water supply and drainage systems and municipal pipeline networks, PVC pipe connectors (including elbows, tees, couplings, etc.) are critical components that ensure the sealing and long-term reliable operation of the pipeline system. The quality of these connectors directly depends on the precision and reliability of the PVC pipe connector mold used in their manufacturing process. As a professional mold manufacturer, Yige Mold deeply understands that such molds must not only meet conventional injection molding requirements but also be specially designed to address the characteristics of PVC materials and the specific needs of pipeline systems.

I. Functional Requirements of PVC Pipe Connectors and Mold Design Challenges

PVC pipe connectors serve important functions in building drainage systems, and these functional requirements translate into specific challenges for mold design:

1. Stringent Dimensional Accuracy Requirements

   The mating dimensions of the connector's socket and spigot must be precisely controlled. Through mature process control, Yige Mold ensures that the inner diameter tolerance of the socket, the taper of the spigot outer diameter, and the position accuracy of sealing grooves meet industry standards, providing the geometric foundation for leak-free connections in pipeline systems.

2. Long-Term Service Reliability

   PVC material exhibits shrinkage and creep characteristics. Yige Mold fully considers this factor in its designs. By optimizing product structural design and cooling systems, we ensure connectors maintain stable performance under long-term water pressure and temperature fluctuations.

3. Production Efficiency Optimization

   As high-volume standard parts, connectors require efficient production. Through reasonable multi-cavity layouts and stable mold structures, Yige Mold is committed to improving production efficiency while ensuring consistent quality.

II. Core Technical Features of PVC Pipe Connector Molds

A PVC pipe connector mold manufactured by Yige Mold embodies the following core technical features:

1. Precision Molding System

The cavity and core are made from suitable steel and undergo precision machining. Yige Mold emphasizes the dimensional stability of critical mating surfaces and appropriate surface treatments to ensure precision over long production runs.

2. Optimized Gating System

Employs reasonable gate design and runner layout aimed at achieving uniform melt filling and reducing material waste. Yige Mold's experience contributes to balanced filling consistency in multi-cavity molds.

3. Efficient Cooling System

Cooling channels are designed according to product structural characteristics. Yige Mold pays attention to variations in product wall thickness, striving for uniform cooling and reduced product deformation through zoned cooling designs.

4. Reliable Ejection System

The ejection mechanism is designed for smooth operation and rational layout. Yige Mold ensures reliable ejection action to avoid product deformation upon ejection and guarantees the stability of the ejection system over long-term operation.

5. Accurate Guidance and Alignment

Uses guide pillar and bushing systems with appropriate precision. Yige Mold ensures accurate alignment of mold plates and that clamping repeatability meets production requirements, providing a foundation for stable long-term mold operation.

III. Typical Types of PVC Pipe Connector Molds

Yige Mold can provide various types of PVC pipe connector molds according to customer needs:

1. Elbow Molds

For producing elbows of different angles, focusing on inner wall thickness control and appearance quality.

2. Tee Molds

For producing equal and reducing tees, with attention to weld strength at branch junctions.

3. Coupling/Socket Molds

For producing pipe coupling sleeves, prioritizing inner hole dimensional accuracy.

4. Reducer Molds

For producing transition fittings between different pipe diameters, noting wall thickness control at the reduction section.

5. End Cap Molds

For producing end closures for pipes, requiring precision on sealing surfaces.

IV. Mold Manufacturing Process Flow

Yige Mold follows a rigorous manufacturing process to ensure mold quality:

1. Design Phase

   Mold structure design based on product drawings, completing machining process planning.

2. Machining Phase

   Performing plate machining, precision machining of cavities and cores, and fabrication of various systems.

3. Heat Treatment Phase

   Applying appropriate heat treatment to key components to ensure their properties.

4. Assembly and Debugging Phase

   Completing precision assembly of all components, conducting trial molding and parameter adjustment, followed by final inspection and delivery.

V. Mold Maintenance and Care

To ensure long-term stable operation of molds, Yige Mold recommends and supports customers in establishing standardized maintenance procedures:

1. Routine Maintenance

   Includes cleaning after production, checking lubrication status, and clearing the cavity.

2. Regular Servicing

   Periodic comprehensive inspection, measurement of key dimensions, and replacement of wear parts.

3. Storage Management

   Rust prevention treatment and proper storage for molds idle for extended periods.

VI. The Impact of Molds on Product Quality

Yige Mold believes that mold quality directly affects key indicators of the final product:

1. Dimensional Accuracy

   Determines the connector's mating seal and installation quality.

2. Appearance Quality

   Affects product market competitiveness and user perception.

3. Mechanical Properties

   Mold design influences the product's internal structure, thereby determining its joint strength.

4. Production Efficiency

   Reasonable mold design helps shorten cycles and reduce per-unit cost.

VII. Considerations for Selecting a Mold Supplier

When selecting a supplier like Yige Mold, customers can consider the following aspects:

1. Technical Capability

   Evaluate the supplier's experience with similar products and their design and machining capabilities.

2. Quality Assurance

   Understand their quality control systems and inspection methods.

3. Delivery Capability

   Assess their manufacturing cycle control and performance record.

4. Cost-Effectiveness

   Comprehensively evaluate mold price, service life, and maintenance costs.

Conclusion

PVC pipe connector molds are a vital foundation for ensuring the reliability of building drainage systems. Yige Mold specializes in the design and manufacturing of such molds. Leveraging a deep understanding of PVC material properties and pipeline system requirements, we are committed to providing customers with stable and reliable mold solutions. We focus on the practicality, durability, and production efficiency of our molds, aiming to create value for our customers through our products and services, and to contribute to the development of the building water supply and drainage industry.
