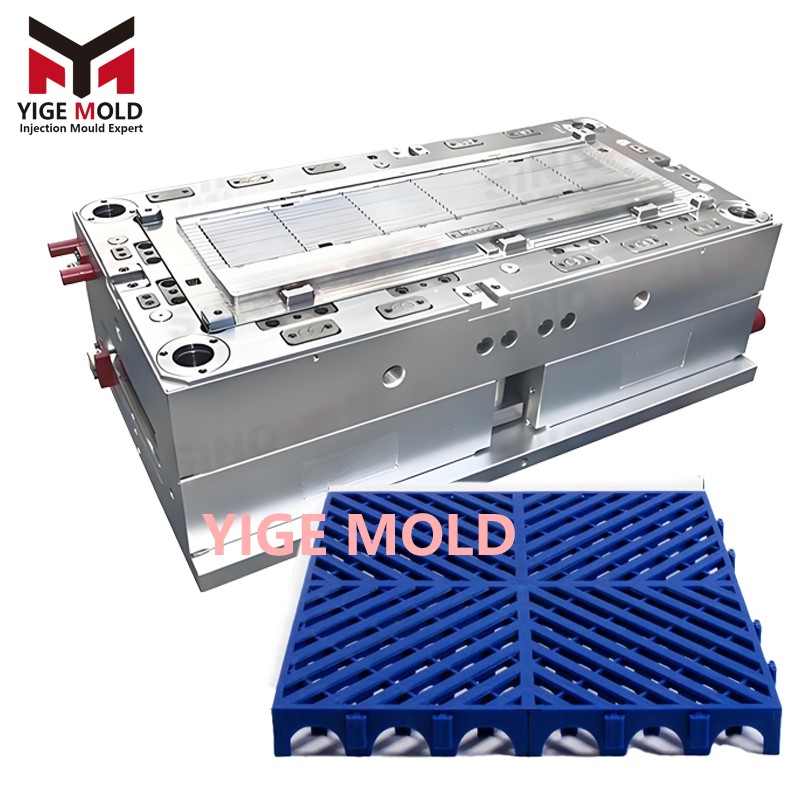

I. Core Technical Features

Resilient flooring molds are critical equipment in polyvinyl chloride (PVC) flooring production, with their design and manufacturing quality directly determining the product's quality, precision, and service life. The inherent properties of PVC materials dictate that molds must possess four core technical characteristics:

1. High-Precision Forming Capability

PVC flooring products require strict dimensional tolerances (e.g., medical tubing errors ≤0.01mm). Molds must ensure cavity dimensional accuracy through precision machining to prevent product deformation or assembly failure. Utilizing five-axis machining centers for precision processing, cavity accuracy is controlled within ±0.02mm, ensuring seamless flooring connections.

2. Strong Corrosion Resistance

To address hydrogen chloride gas generated during PVC decomposition, mold materials prioritize corrosion-resistant options such as 718H pre-hardened steel and S136 stainless steel. Surface treatments like chrome plating or electrolytic polishing extend mold lifespan by 3-5 times, exceeding 800,000 cycles.

3. Precise Thermal Management System

PVC has a narrow melting temperature range (160-200°C), with decomposition occurring above 200°C. Molds are equipped with zoned temperature control and efficient cooling systems to maintain cavity temperature differences within ≤±2°C, ensuring molding efficiency and product quality. The cooling system adopts conformal design with water channel spacing controlled at 20-30mm, improving cooling efficiency by 30%.

4. Optimized Runner Design

To address PVC melt's high viscosity, runners employ smooth curved structures to reduce flow resistance and ensure uniform cavity filling, avoiding defects such as short shots and air bubbles. Synchronized 16-32 point injection ensures uniform density of reinforcement ribs, achieving compressive strength of 8-12 tons/㎡.

II. Key Design and Processing Technologies

1. Material Selection and Compatibility

For standard PVC products, P20 tool steel may be selected, while high-end medical or highly corrosive applications prioritize 718H and ASP-60 powder high-speed steels. Hardness is maintained between HRC33-62 to balance wear resistance and machinability. The material system employs pre-hardened 718H mold steel (HRC 36-38) paired with carbide inserts.

2. Structural System Optimization

• Demolding mechanisms utilize multi-point synchronized ejection to address PVC's tendency to stick, with ejection pin density of at least 2 per 100cm²

• Vent hole dimensions are set at 0.03-0.05mm to prevent gas entrapment

• Cooling systems adopt conformal design with water channel spacing controlled at 20-30mm

3. Precision Machining Processes

High-speed milling and EDM achieve high-precision cavity forming, with wire-cut machining accuracy reaching ±0.005mm. Surface polishing combined with nitriding processes reduce cavity roughness to Ra≤0.08μm, enhancing product surface finish. PVD coating technology extends mold lifespan beyond 800,000 cycles.

III. Application Scenario Customization Solutions

1. Architectural Decoration Field

For large-scale PVC pipes and profiles production, molds employ spiral runner designs to ensure wall thickness uniformity in drainage pipes up to ≤630mm diameter. Single-cycle production yields 4-8 standard grating floor panels (specifications 400×400mm to 1200×1200mm) with daily capacity reaching 300-800㎡.

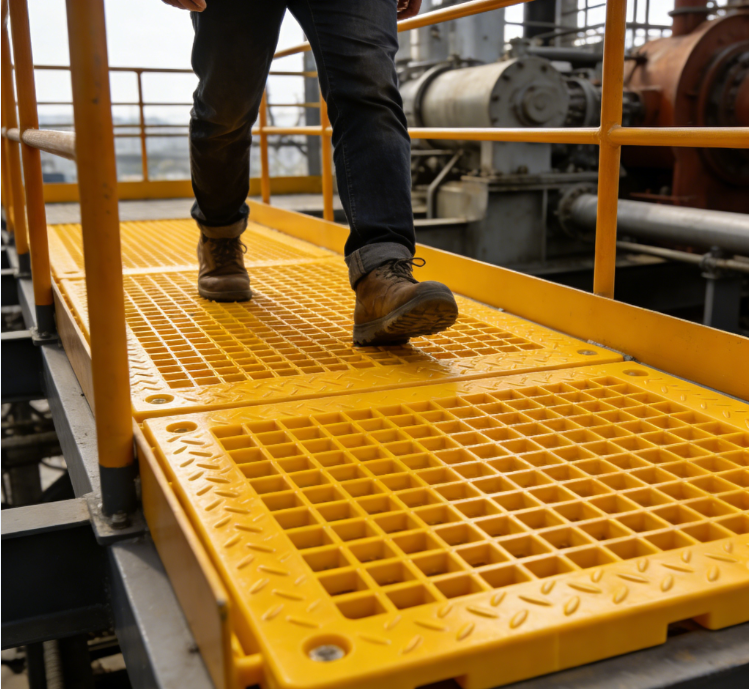

2. Industrial Storage Scenarios

• Load-bearing molds: Reinforcement rib density increased to 35-40 ribs/㎡

• Anti-static configuration: Built-in copper mesh embedded molding structure

• Rapid drainage design: Optimized tilt angle of 30°

• Corrosion resistance upgrade: Added acid/alkali-resistant coating modules

3. Special Vehicle Passageways

• Ultra-high load-bearing structure: Single-point load-bearing design up to 15 tons

• Enhanced anti-slip: Dual-texture composite anti-slip system

• Precise anti-slip texture replication: German precision etching technology creates 0.3-0.8mm depth three-dimensional anti-slip textures on mold surfaces

IV. Quality Control System

1. Three-coordinate Measurement: Grid dimensional tolerances controlled within ±0.15mm

2. Pressure Testing: Simulates 8-10 years of usage wear to ensure product durability

3. UV Aging Resistance Testing: Test reports provided for each batch, compliant with EN14372, EN649-2011, IEC62321, GB4085-83 standards

4. Quality Management Certification: Compliant with ISO 9001:2015 quality management system certification

V. Yige Service Support System

• Mold Trial Guarantee: 30-day free trial period to ensure mold performance meets standards

• Rapid Response: 24-hour technical support team to address various production issues

• Upgrade Services: Annual mold performance optimization inspections to continuously improve production efficiency

• Spare Parts Supply: Common spare parts delivered within 48 hours to minimize downtime

VI. Industry Application Advantages

1. Production Efficiency Improvement

Modular hot runner technology and multi-layer cooling structure design reduce molding cycle time by 25%, with daily capacity reaching 300-800㎡, significantly improving production efficiency.

2. Product Quality Assurance

Mold lifespan exceeds 800,000 cycles, product dimensional tolerances controlled within ±0.1mm, and surface finish Ra≤0.08μm ensure stable batch-to-batch product quality.

3. Cost Control Optimization

Mass production reduces unit costs, mold maintenance costs decrease by 40%, and comprehensive cost-effectiveness improves significantly.

4. Excellent Environmental Performance

Supports up to 30% recycled material usage, energy-saving injection molding solutions reduce energy consumption by 22%, meeting green building material standards.

VII. Market Application Prospects

1. Continued Market Scale Growth

The high-precision custom PVC mold market for architectural decoration reached ¥2.86 billion in 2023, with a CAGR of 11.7%. As "urban renewal" and "old neighborhood renovation" policies advance nationwide, demand for lightweight, easy-to-install, and aesthetically pleasing PVC decorative materials in existing building renovation projects surges, further expanding custom mold applications.

2. Strong Export Demand

As the world's largest PVC flooring exporter, China's PVC flooring exports grew from 3.388billionin2017to6.242 billion in 2022, with a CAGR of 14.41%. January-July 2023 exports reached $2.935 billion, with overseas demand for high-precision PVC flooring molds continuing to grow.

3. Increasing Technical Barriers

The proportion of PVC mold orders with composite functions such as rapid mold changing, micro-foaming molding, and online texture embossing increased from 18% in 2021 to 34% in 2023, accelerating industry evolution toward high technical barriers and customization levels.

VIII. Key Factors for Choosing Yige PVC Flooring Molds

1. Technical Capabilities

Possesses professional design teams with over ten years of mold manufacturing experience, offering comprehensive services from mold design and trial verification to mass production support. Engineering teams provide customized mold solutions within 14 working days based on specific customer requirements.

2. Quality Assurance

Each mold undergoes strict quality inspection and trial verification, with three-coordinate measurement of grid dimensional tolerances (±0.15mm), pressure testing simulating 8-10 years of usage wear, and UV aging resistance test reports provided for each batch.

3. After-sales Service

Provides technical support and rapid response, with 24-hour technical support teams addressing various production issues, annual mold performance optimization inspections, and common spare parts delivery within 48 hours.

4. Price Advantage

Mass production reduces costs, offering customers highly competitive pricing with significantly improved comprehensive cost-effectiveness.

As a core component of the PVC industry chain, resilient flooring mold technology evolution and application expansion remain deeply interconnected with downstream industry demands. With continuous expansion of application scenarios in architectural decoration, industrial storage, special vehicle passageways, and multi-dimensional consumer demands for product performance, environmental compliance, and delivery efficiency, high-precision, high-performance PVC flooring molds face increasingly broad development prospects.
