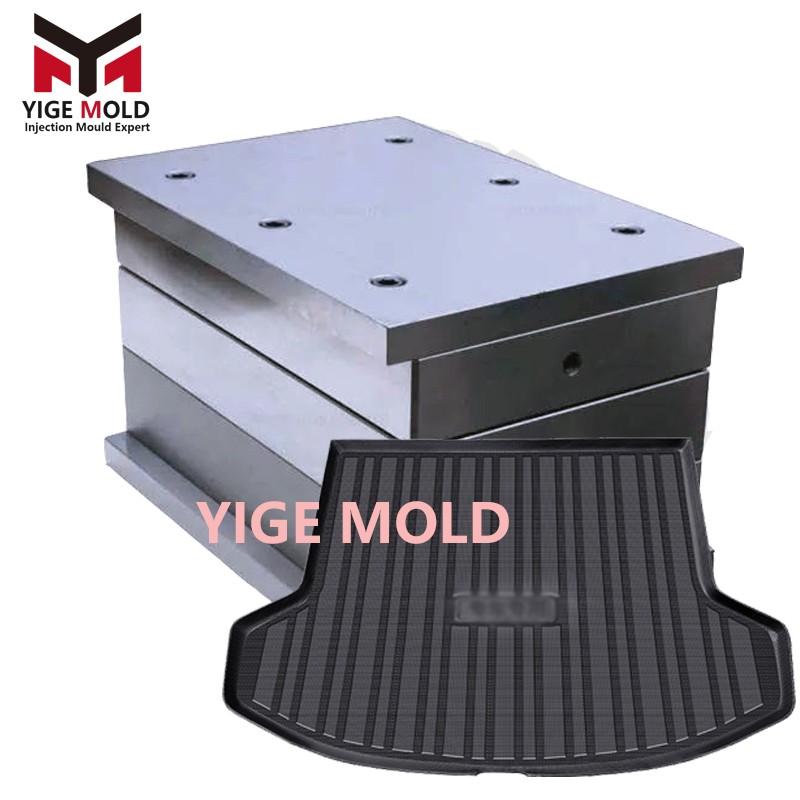

Technical Overview of Injection Molds for Automotive Cargo Liners

In the realm of modern automotive interior manufacturing, molds are revered as the "Mother of Industry." Among these, the injection mold for automotive cargo liners stands out as a prime representative of precision tooling. It serves not only as the core vehicle for transforming thermoplastic elastomers (TPE) and other polymeric materials into functional protective products but also as the critical bridge connecting vehicle data to physical entities. Unlike traditional universal mats, cargo liners produced via injection molding demand that the mold possess an exceptionally high degree of replication capability, restoring the complex spatial structure of a vehicle's trunk with millimeter-level precision.

Precise Adaptation and Data Reconstruction in Mold Design

The development of an automotive cargo liner injection mold begins with a deep digital reconstruction of the trunk space. Since dimensions, wheel arch shapes, spare tire well depths, and hook positions vary even among different model years of the same vehicle, mold design must adhere to the rigorous standard of "one mold per vehicle model." Engineers first utilize high-precision 3D scanning technology to capture the point cloud data of the original vehicle, followed by reverse engineering modeling in Computer-Aided Design (CAD) software.

During the structural design phase, the core challenge lies in managing the molding stability of large-area thin-walled parts. To prevent defects like short shots or warping during injection, these molds typically employ a hot runner system with valve gates. This system precisely controls the injection time and pressure of the molten plastic. Coupled with a multi-point gating design, it effectively reduces shear stress during injection, ensuring the material flows smoothly through the long flow channels. Furthermore, the design of cooling channels is critical; conformal cooling technology is often used, where water lines closely follow the cavity surface. This ensures that areas of varying thickness cool synchronously, minimizing residual internal stress.

Deep Coupling of Molding Process and Mold Structure

The performance of the injection mold directly dictates the physical characteristics of the final product. Unlike the single-sided molds used in thermoforming, injection molds consist of two precision-closed halves—a moving half and a fixed half—forming a complete 3D cavity. During production, granular, pure TPE raw materials are fed into the injection molding machine, melted and plasticized at high temperatures, and then injected into the closed mold cavity under high pressure.

This fully enclosed molding method endows the mold with exceptional structural expressiveness. The cavity surface can be processed via precision EDM (Electrical Discharge Machining) or laser etching to create complex textures, such as anti-slip lychee patterns, 3D geometric textures, or brand logos. More importantly, injection molds can form立体 (3D) products with reinforcing rib structures. Engineers design thickened ribs at key stress points within the mold, giving the produced cargo liner excellent flexural resistance while maintaining flexibility. This structural advantage is unattainable with thermoforming molds, which are limited by sheet stretching processes and struggle to achieve drastic thickness variations on the same plane.

Stringent Requirements of Material Characteristics on Mold Manufacturing

Mold manufacturing standards are closely linked to the properties of the selected materials. High-end cargo liners predominantly use TPE, a material combining rubber-like elasticity with plastic processing characteristics, posing high demands on the mold's temperature control system. TPE is sensitive to temperature fluctuations during injection; therefore, the mold steel must possess excellent thermal conductivity and wear resistance.

Typically, high-quality pre-hardened mold steels such as P20 or 718H are selected. These steels undergo vacuum heat treatment to achieve moderate hardness and excellent polishing performance. For molds requiring a mirror finish, corrosion-resistant stainless steels like S136 may be used. In terms of processing, mold cores and cavities undergo high-speed milling on large gantry machining centers, followed by micro-level rectification via slow-wire cutting and precision grinding. To address the high viscosity of TPE materials, mold surfaces often undergo special coating or nitriding treatments to reduce ejection resistance, preventing stretching deformation during product removal.

Venting Systems and Surface Quality Control

When injection molding large-area cargo liners, the venting design is a decisive factor for product yield. As high-temperature, high-pressure molten plastic fills the cavity at high speed, air and trace volatiles within the cavity must be evacuated rapidly. Poor venting leads to compressed gas generating high heat, causing defects like burns, air bubbles, or short shots.

Therefore, high-precision cargo liner molds typically incorporate micron-level venting slots at the parting line, ejector pin holes, and insert fits. For deep ribs or blind holes, porous steel inserts are used to vent gas through the material's micro-porous structure. This meticulous venting design, combined with surface polishing, ensures the finished product is flawless and has sharp, clear edges that perfectly fit the vehicle's sheet metal structure, achieving true waterproofing and dustproofing.

Ejection Mechanisms and Production Efficiency

Since cargo liners often feature deep 3D edges and complex undercuts, the ejection system design is particularly complex. To ensure the product releases smoothly after cooling shrinkage without deformation, the mold is equipped with a precision ejection system. This includes various components such as ejector pins, sleeves, blade ejectors, and air poppets.

In automated production, the mold must coordinate closely with robotic arms. After the mold opens, the robot arm extends to retrieve the product, while the ejector plate inside the mold accurately resets under the action of return springs or nitrogen gas springs, preparing for the next cycle. To enhance efficiency, some large molds adopt a "single-cavity" or "twin-cavity" layout, presenting high challenges for balanced feeding and synchronous cooling. By optimizing flow balance and cooling circuits, the mold can significantly shorten the molding cycle while ensuring product consistency, meeting the demands of large-scale industrial production.

In summary, the automotive cargo liner injection mold is a complex system engineering project integrating precision machinery, materials science, and thermodynamics. From precise data acquisition to micron-level cavity machining, and from hot runner layout to venting and cooling optimization, every step embodies the pursuit of manufacturing excellence.
