Single-sided Pallet Molds: The Precision Industrial Pedestal Behind Modern Logistics Arteries

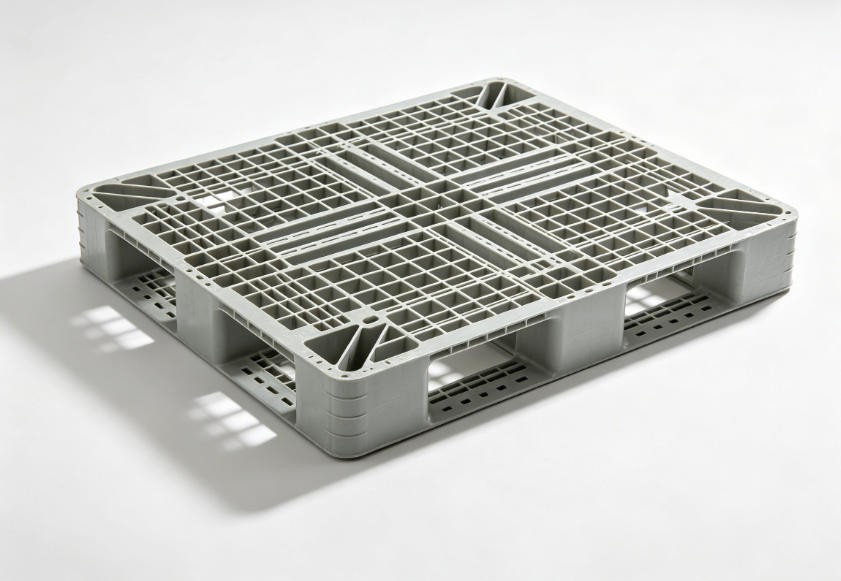

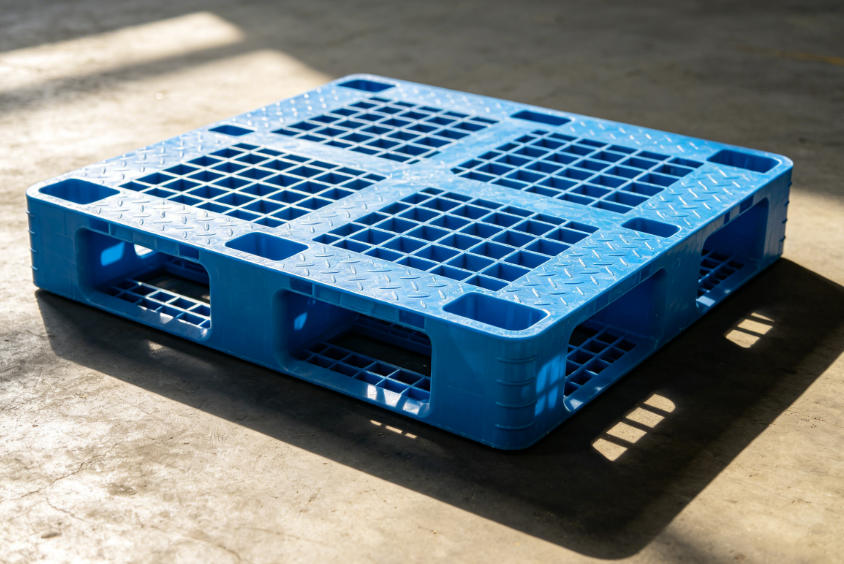

Single-sided pallet molds represent core production equipment in the injection molding field, specifically engineered for modern logistics warehousing and supply chain systems. As the most fundamental unitized carrier in global cargo transport and warehousing circulation, pallets are hailed as "one of the key innovations in the 21st-century logistics industry." Single-sided pallet molds exist precisely to efficiently mass-produce these plastic pallets, which feature a flat surface on only one side (typically the top) and a bottom structure reinforced with grids, runners (three-runner), or perimeter bases (nine-runner). They are not merely a cold assembly of steel and machinery, but a precision industrial pedestal supporting the high-speed flow of global materials.

From the perspective of product positioning and usage scenarios, the products manufactured by single-sided pallet molds must possess extremely high mechanical strength and fatigue resistance. Since single-sided pallets in warehousing and logistics must frequently withstand violent handling by forklifts (including manual hydraulic pallet jacks and mechanical forklifts), long-term static loads on racks, and immense pressure from stacked goods, their mold design must strictly adhere to or even exceed national standards (such as GB/T 15234) and international standards. Finished pallets produced by high-quality molds often need to achieve static loads of 4 to 6 tons, withstand dynamic impact loads of 1.5 to 2 tons, and possess a racking capacity of around 1 ton. Any minute dimensional deviation or internal stress defect could cause the pallet to fracture under heavy loads, potentially leading to supply chain paralysis or even safety accidents.

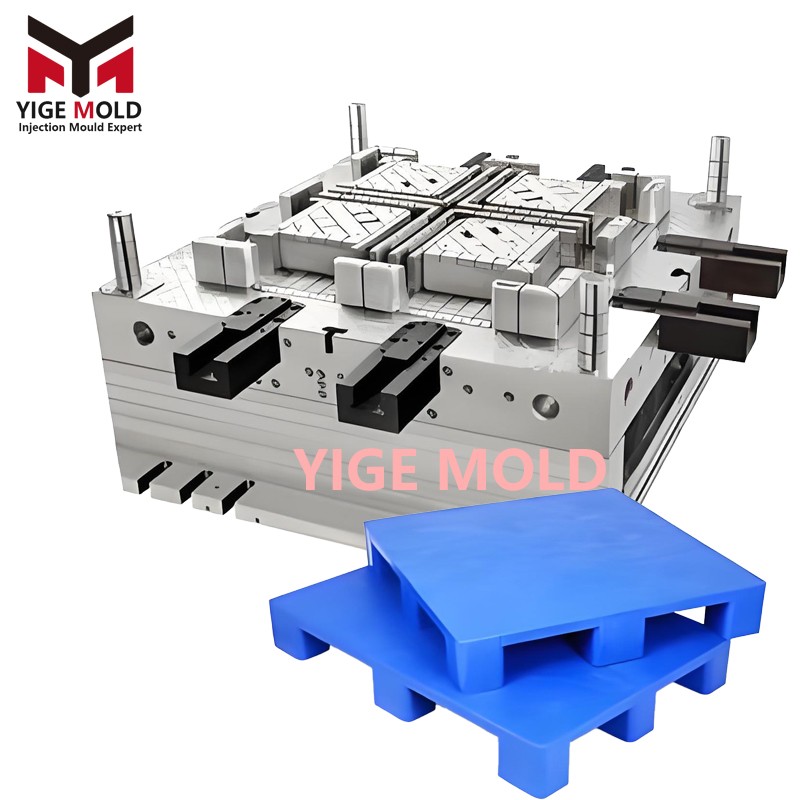

In terms of structural design and steel selection, single-sided pallet molds exhibit distinct characteristics of "large tonnage and high precision." Due to the massive molding area of pallets (common specifications include 1200mm×1000mm, 1100mm×1100mm, etc.) and the extremely complex grid or runner-type reinforcement ribs on the bottom, the molds endure exceptionally high cavity pressure during injection. Therefore, the mold bases typically utilize high-strength, high-toughness pre-hardened plastic mold steels (such as P20, 718H, or 1.2738) to ensure no deformation occurs under long-term high-pressure clamping, guaranteeing the dimensional stability of the pallet. To cope with the complex undercut structures on the bottom of single-sided pallets (such as grooves for four-way forklift entry and anti-slip textures), the mold interior must incorporate precision and durable slider core-pulling mechanisms and angled lifter ejection systems. These mechanisms must precisely retract the moment the mold opens, ensuring the pallet is not scratched or stress-whitened during demolding due to its complex bottom structure.

The design of the gating system and cooling system is the soul that determines the production efficiency and product quality of single-sided pallet molds. Addressing the characteristics of large volume, thin walls, and numerous grid openings, modern high-end single-sided pallet molds universally adopt multi-point open or valve-gated hot runner systems. Through scientific mold flow analysis (such as Moldflow), engineers evenly distribute hot runner nozzles along the long sides or specific stress points of the pallet. This ensures that molten plastic can rapidly and evenly fill the entire massive cavity with minimal pressure loss, effectively preventing issues like short shots, weak weld lines, or warping caused by excessively long flow paths. Meanwhile, to shorten the lengthy molding cycle—which can often take several minutes—the mold interior is typically designed with extremely complex and highly efficient spiral or straight-through cooling channels. By circulating cooling media to rapidly dissipate heat, these channels significantly boost mass production efficiency while preventing sink marks in thick-walled areas like the bottom reinforcement ribs.

It is worth mentioning that with the rise of environmental awareness and smart logistics, single-sided pallet molds are also evolving towards lightweight and functional designs. To respond to the green manufacturing call of "weight reduction without quality loss," mold designers utilize parametric modeling for iterative optimization. While guaranteeing the pallet's load-bearing capacity, they continuously optimize the distribution of bottom grids and the thickness of reinforcement ribs to maximize the reduction of raw material consumption (such as HDPE, PP, or recycled materials). Furthermore, to adapt to modern logistics demands for cargo tracking, many advanced single-sided pallet molds are designed with slots for In-Mold Labeling (IML) or cavities for embedding RFID chips from the outset. Some even integrate structures for molding in steel pipes, allowing the produced pallets to directly embed steel pipes to multiply their load-bearing performance, perfectly meeting the rigorous requirements of automated立体 warehouses and cold chain logistics.

In summary, the single-sided pallet mold serves as a crucial benchmark for measuring the strength of a region's large-scale precision injection molding technology. It requires the manufacturer to possess not only a profound foundation in mold engineering and precision processing equipment but also a deep understanding of the end-user logistics scenarios. From professional mold industry clusters in Taizhou, Zhejiang, to the global stage, high-quality single-sided pallet molds are continuously casting solid, durable, and highly efficient "industrial footpads" for the modern logistics system, silently supporting the pulse of the global economy with every cargo handling and circulation.
