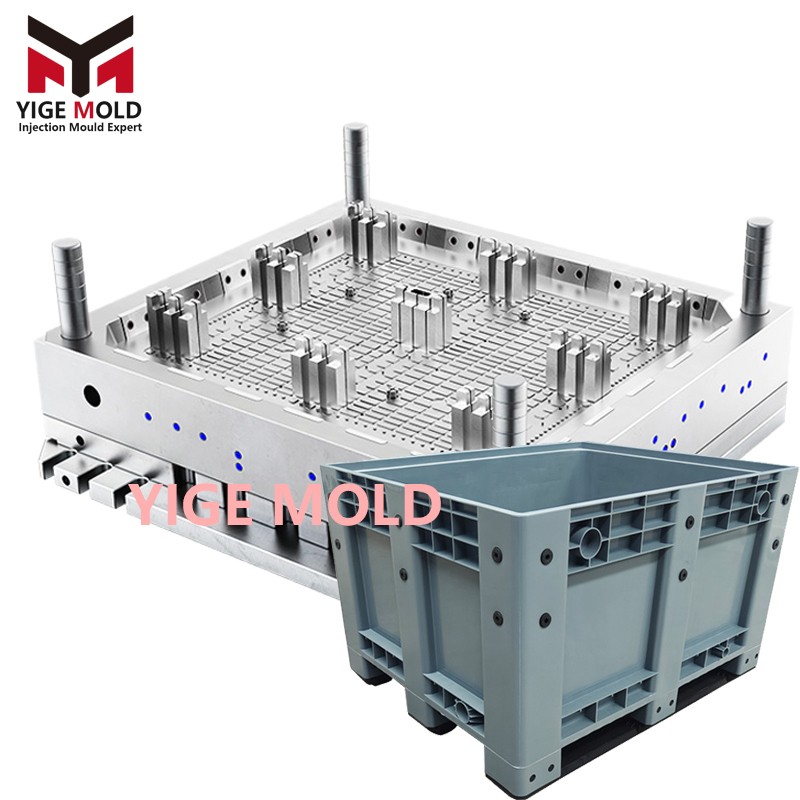

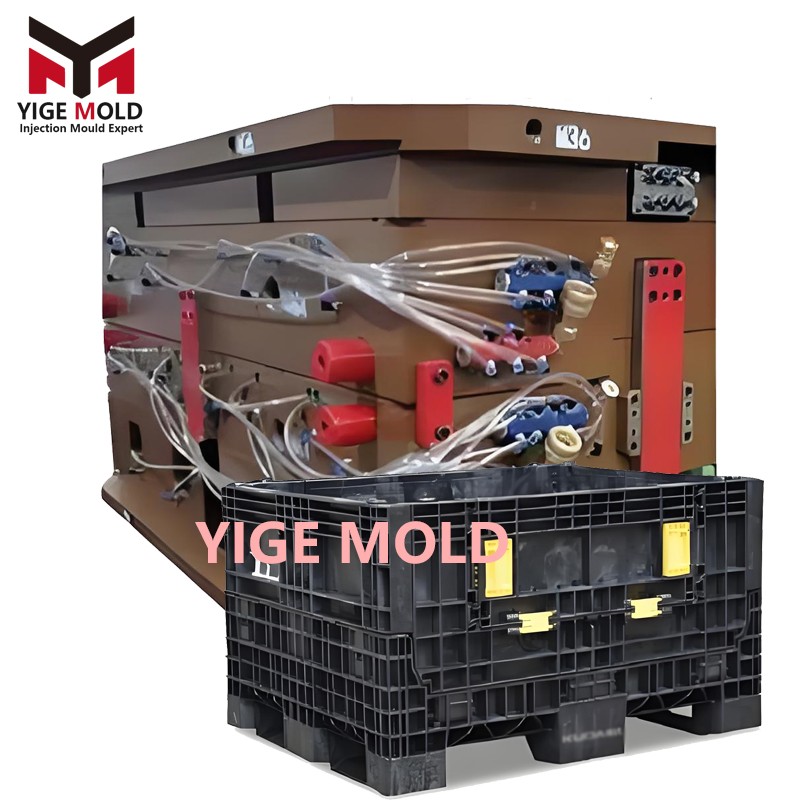

Crate with Pallet Mold

Product Definition:

A crate with pallet mold is a specialized mold for the integrated injection molding of logistics containers with a built-in plastic pallet at the base. This product combines the traditional separate plastic crate and transport pallet into a single unit, achieving seamless integration throughout the entire process of goods storage, handling, stacking, and transportation. It is widely used in standardized logistics systems across industries such as automotive parts, electronic components, food cold chain, and pharmaceuticals. Its core lies in achieving high strength, high rigidity, standardized interfaces, and excellent stacking performance for both the crate body and the pallet structure.

Mold Technology System:

1. Large Deep-Draw Dual-Structure Design

• Upper-Lower Composite Cavity System:

  • Upper Crate Cavity: Forms the main crate body, internal dividers, anti-slip ribs, identification slots, etc., with depths up to 400-600mm.

  • Lower Pallet Cavity: Forms 9-foot or "川"-shaped pallet structures, including forklift pockets, lifting slots, anti-slip studs, etc.

  • Central Connection Section: Achieves force transfer through a dense network of reinforcing ribs, requiring uniform force distribution during ejection.

• Extra-Long Core Pulling and Ejection System:

  • Employs a hydraulically synchronized multi-stage core pulling mechanism for forming the two-way forklift pockets under the pallet.

  • Equipped with gas-assisted ejection devices to create an air film between the deep-draw crate and the mold core, reducing demolding resistance.

  • Ejection stroke can exceed 500mm, requiring early return mechanisms and an ejector plate guiding system.

2. Multi-Layer Composite Runner and Gating System

Gating System Layout:
├── Main Runner: Uses a Φ40mm hot-to-cold runner system.
├── Primary Gates: 4 hot nozzles direct into the base of pallet reinforcing ribs.
├── Secondary Distribution: Fills the crate upwards via ribs on the crate sidewalls.
└── End Control: Sets overflow wells at the upper rim of the crate.
Technical Features:
- Achieves sequential filling from bottom to top (pallet → crate).
- Ensures via mold flow analysis that weld lines are located in non-load-bearing ribs.
- Gates are automatically sheared, requiring no secondary machining.

3. High-Rigidity Cooling and Venting Network

• Multi-Layer Independent Cooling Circuits:

  • Pallet Layer: Uses fountain cooling (Bubblers) for thick leg blocks.

  • Crate Layer: Employs spiral cooling channels around the crate perimeter.

  • Connecting Rib Layer: Densely arranges cooling pins.

• 3D Venting System:

  • Machined stepped venting slots (0.03/0.02/0.01mm) on parting lines, slider mating surfaces, and insert seams.

  • Places porous metal vent inserts in last-fill areas.

  • Total venting area is not less than 0.1% of the projected cavity area.

4. Standardized Interface Molding Technology

• Stacking Guidance System:

  • Forms tapered guide posts on the crate bottom and flared guide sockets on the crate top respectively.

  • Fit clearance is 0.5-1.0mm, enabling rapid four-way alignment.

• Logistics System Compatibility:

  • Pallet leg block spacing precisely matches Euro/National standard forklift tines.

  • Crate sides reserve slots for RFID tags and barcode scanning areas.

Manufacturing Precision Control:

Molding Process Parameters:

1. Material and Process Window

• Base Material Selection: High Impact Polypropylene (HIPP) or High-Density Polyethylene (HDPE), MFR 5-10 g/10min.

• Temperature Settings:

  Barrel Temperature: 180°C → 190°C → 200°C → 205°C (Nozzle)
  Mold Temperature: Front 40-50°C, Rear 30-40°C (Promotes ejection)
  Hot Runner Temp. Variation: ≤ ±3°C

• Injection Parameters:

  • Uses a three-stage Slow-Fast-Slow injection profile.

  • Injection Pressure: 80-110 MPa, Packing Pressure: 60-80 MPa.

  • Cooling Time: 40-70 seconds (depending on wall thickness and material).

2. Warpage Control Strategy

• In-Mold Sizing: Immediate placement into a sizing fixture after ejection, cooling for 24 hours.

• Annealing Treatment: Treatment in a 60-70°C oven for 2-4 hours to relieve internal stress.

• Load Test: 24-hour test under 1.5 times the rated load (typically 1000 kg).

Mold Maintenance System:

1. Key Maintenance Nodes

• Daily: Clean parting surfaces, check hydraulic system pressure.

• Every 30k cycles: Replace ejector pins, return springs, clean cooling channels.

• Every 100k cycles: Inspect slider wear, repair guiding mechanisms.

• Every 300k cycles: Complete disassembly inspection, assess cavity repair value.

2. Life and Economics

• Mold Life: 600k - 1 million cycles (repairable 2-3 times).

• Cycle Time: 90-150 seconds/cycle (including robotic part removal).

• Investment Payback Period: 10-16 months (calculated based on two-shift operation).

Technology Development Trends:

1. Lightweight Design

• Uses structural optimization algorithms to reduce weight by 15-20% while maintaining strength.

• Develops microcellular foaming technology to reduce material density.

2. Smart Functions

• Integrates temperature sensors to monitor cold chain transport status.

• Reserves mounting locations for IoT modules to enable full-process tracking.

3. Green Manufacturing

• Uses dedicated runners for regrind, supporting the addition of over 30% recycled material.

• Quick color change systems enable color switching within 30 minutes.

Industry Application Data:

• Global Annual Demand Forecast (2025): Exceeds 20 million units.

• Standardization Level: European standard series like 1200×1000mm, 1200×800mm have been established.

• Market Share: China accounts for over 65% of global production capacity.

This mold technology has driven a systematic change in logistics containers from "discrete packaging" to "unit load handling," achieving comprehensive benefits in the automotive and logistics industries, including a 30% reduction in handling costs, a 40% improvement in space utilization, and a 60% reduction in packaging waste.
