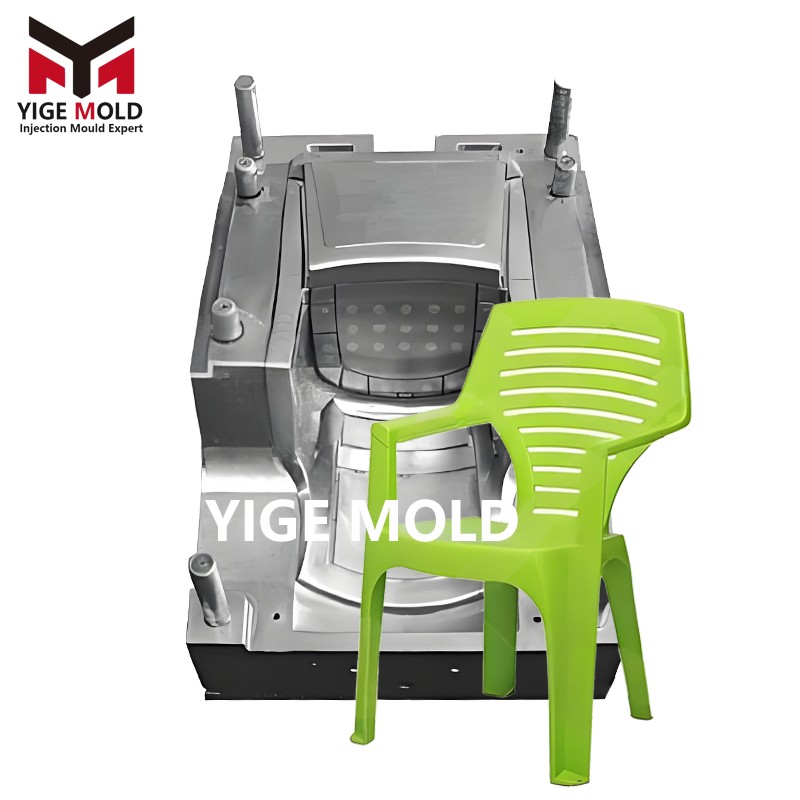

High-Precision Injection Mold for Household Plastic Chairs: The Exact Conduit of Aesthetics, Mechanics, and Ergonomic Design

The revolutionary significance of plastic chairs in furniture history stems from their seamless fusion of complex 3D contours, single-body construction, and mass production. Central to achieving this fusion is the High-Precision Injection Mold for Household Plastic Chairs. It is not merely a simple container; rather, it is a high-accuracy, high-performance system that converts industrial design concepts into a tangible, tactile, and load-bearing physical product, and must do so consistently every few seconds. Its designation as "high-precision" refers not simply to dimensional tolerances, but more critically encompasses the faithful rendering of aesthetic elements, the uniformity of structural integrity, and the precise replication of the intended user interaction.

1. Core Definition and Inherent Value: Manufacturing Beyond the Product

The High-Precision Injection Mold for Household Plastic Chairs is a specialized tool engineered to manufacture single-piece or minimal-component plastic chairs featuring intricate contours, intended for residential use. Its "high-precision" attribute embodies a multi-layered meaning:

1. Aesthetic Fidelity: It perfectly replicates every curve, chamfer, and surface texture intended by the designer, guaranteeing a zero-loss transfer of the creative vision. The finish of the mold cavity must achieve a grade of A1 or higher, often reaching a mirror polish, directly determining the product's visual premium quality and tactile feel.

2. Functional Accuracy: It ensures absolute reliability in critical functional zones of the chair—such as the seat's conformity to the human body (seating posture comfort), the floor-level stability of the legs, and the smooth engagement of stacking features. This demands control of critical fit dimensions and geometrical form tolerances at the micrometer level.

3. Performance Consistency: It guarantees that every chair produced exhibits identical structural performance under specified mechanical loads (e.g., impact, cyclic fatigue). This depends on the mold's precise control over variables like wall thickness distribution, placement of reinforcement ribs, and the geometry of high-stress areas.

4. Production Stability: It maintains all the above qualities with unwavering consistency across hundreds of thousands of molding cycles, resisting wear, thermal fatigue, and stress-induced deformation.

Its primary value is that it serves as the singular, indispensable conduit linking "creative design" with "quality at mass-market scale"—the industrial catalyst that transforms a conceptual piece of domestic furniture into an accessible artifact in countless homes.

2. Foundational Design Challenges: Sculpting Within Constraints

The design of a plastic chair mold represents a discipline of extreme optimization amidst competing and often conflicting physical and engineering requirements.

1. The Duality of Large, Free-Form Surfaces and Uniform Material Behavior:

   • Challenge: Chairs typically possess expansive, non-planar surfaces and deep-draw geometries. The plastic polymer (commonly PP, PA, or PC/ABS) shrinks in a non-uniform (anisotropic) manner during solidification due to variations in local wall thickness, flow path, and cooling rates, which readily leads to warpage and torsional distortion, resulting in unstable legs or a non-planar seat.

   • Solutions:

     • Predictive Engineering via Process Simulation: Leverage advanced CAE software to conduct comprehensive simulations of filling, packing, cooling, and anticipated warpage before any metal is cut. This virtual prototyping optimizes gate locations, fine-tunes wall thickness transitions, predicts deformation patterns, and facilitates compensated or "deflected" mold design—intentionally building a counter-geometry into the mold to offset the predicted post-molding distortion.

     • Conformal Cooling Technology: For critical zones like the chair back and seat pan, implement conformal cooling inserts fabricated via additive manufacturing (3D printing). These enable cooling channels to follow the 3D product contour at a near-constant distance, achieving optimal thermal uniformity. This approach directly targets and minimizes the internal stresses and resultant warpage caused by uneven cooling.

2. The Tension Between Aesthetic Ideals and Manufacturing Realities:

   • Challenge: The designer's pursuit of sharp aesthetic features, deep undercuts, or subtle surface textures frequently conflicts with the fundamental flow and solidification behavior of plastics and the mechanical requirements for part ejection.

   • Solutions:

     • Orchestrated Movement of Precision Internal Mechanisms: To form complex undercuts and challenging geometries, the mold interior incorporates numerous side-actions (sliders), lifters, and hydraulic cylinders. These mechanisms must execute their movements during mold opening and closing with the precision and timing of a fine timepiece, fitting together with perfect alignment to avoid visible parting lines or flash. Their manufacturing accuracy and assembly tolerances are paramount to the final product's visual integrity.

     • High-Fidelity Surface Texturing: Many household chairs employ fine-grained textures (leather, linen, geometric patterns) to enhance aesthetic appeal and feel. The mold's chemical etching (texturing) process must achieve exceptional artistic and technical quality, ensuring pattern clarity and depth while guaranteeing trouble-free part release without surface damage. This requires a homogenous, high-quality mold steel (e.g., premium stainless steels like S136) and a flawlessly polished surface prior to the texturing operation.

3. Balancing Structural Integrity with Minimal Mass:

   • Challenge: The chair must withstand dynamic loads associated with use (e.g., impact, rocking) while minimizing weight for cost, handling, and sustainability reasons.

   • Solutions:

     • Optimized Internal Rib Architecture: Using CAE-driven topology optimization and structural analysis, a sophisticated network of reinforcing ribs is designed for the non-visible interior surfaces. The dimensions, spatial distribution, and fillet radii of these ribs are computationally optimized to deliver maximum gains in bending and torsional stiffness for minimal added material mass. Accurately machining these deep, closely spaced ribs presents significant challenges for tooling, EDM, and polishing processes.

3. Fabrication and Commissioning: Transforming Digital Data into Physical Perfection

1. Advanced 5-Axis Machining: The chair's complex, sculptural surfaces are machined from solid blocks of steel using High-Speed 5-Axis Machining Centers. This allows for continuous, smooth tool paths that create pristine, seamless surfaces without visible witness lines, demanding the highest levels of machine tool precision, CAM programming skill, and operator expertise.

2. Micron-Level Fitting and Superior Surface Finishing: Critical interfacing surfaces—between core and cavity, and between moving mold components—are finished to achieve a "zero-clearance" fit, essential for preventing flash. This is followed by an extensive, labor-intensive process of manual polishing, often requiring hundreds of hours from master craftsmen to achieve the specified mirror or textured finish. This stage represents one of the most experience-dependent and artisanal aspects of mold making.

3. Sophisticated Melt Delivery and Control: To manage the flow of plastic across large part geometries and critically control weld line formation, multi-point hot runner systems are essential. These are often specified as Sequential Valve Gate (SVG) systems. By programming the precise opening sequence of individual valve gates, the flow front of the molten plastic can be actively steered. This technique strategically positions or even eliminates weld lines in non-critical areas, enhancing both cosmetic appearance and mechanical strength.

4. The Precision "Tuning" Phase: Commissioning a high-precision chair mold is less about basic debugging and more about the tuning of a complex system. The process engineer applies deep expertise in polymer behavior to meticulously adjust:

   • Multi-stage Injection Velocity and Pressure Profiles: To control the advancement and packing of the melt within the intricate cavity.

   • Zoned Mold Temperature Control: Applying different temperatures to various mold sections to manage differential cooling and shrinkage.

   • Precision Packing and Cooling Parameters: To compensate for material shrinkage without introducing sinks or excessive stress.

     The ultimate objective is to produce not just a filled part, but a part that meets all specified targets for dimensional accuracy, geometric form, flatness, and internal stress levels while demonstrating the robustness required for long-term, stable production.

4. Validation: Stringent, Application-Specific Testing

Beyond standard dimensional inspection, parts from such a mold undergo a battery of rigorous tests simulating real-world home use:

• Long-Term Static Load Testing: Assessing permanent deformation after sustained loading.

• Dynamic Impact and Fatigue Testing: Simulating real-use stresses like tilting, rocking, and accidental drops.

• Environmental Stress Testing: Evaluating performance and dimensional stability under varying temperature and humidity conditions.

• Stackability Testing (for stackable designs): Verifying engagement/disengagement smoothness and wear resistance over repeated cycles.

  Findings from these tests are fed back for final, adjustments to the mold or process, ensuring the delivered product meets the "zero-defect" quality target.

Conclusion

The High-Precision Injection Mold for Household Plastic Chairs embodies the synthesis of contemporary industrial design, advanced polymer science, state-of-the-art manufacturing technology, and process control. It operates in silence within the production floor, yet with its machined steel forms, it faithfully translates a designer's vision of form and light into reality, endowing engineered plastic with structural reliability, user comfort, and aesthetic appeal. The "precision" it pursues is fundamentally about the flawless, repeatable replication of a specific user experience—one of stability, comfort, and visual harmony. Each chair that emerges is a testament to the principles of industrial artistry and exacting manufacture, transforming synthetic material into a functional object that supports and enhances the daily rituals of domestic life.
